DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay SS 25" x 19.5" x 10EWS2520W6C

Elkay Wall Hung Single Bowl Hand Wash Sink Kit (Hand Wash Sink). Model EWS2520W6C. 14 gauge 304 Stainless Steel construction; Single bowl with rear center drain placement; Includes LK940GN05T6H faucet with 6" wristblade handles

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS2520W6C.pdfData sheet

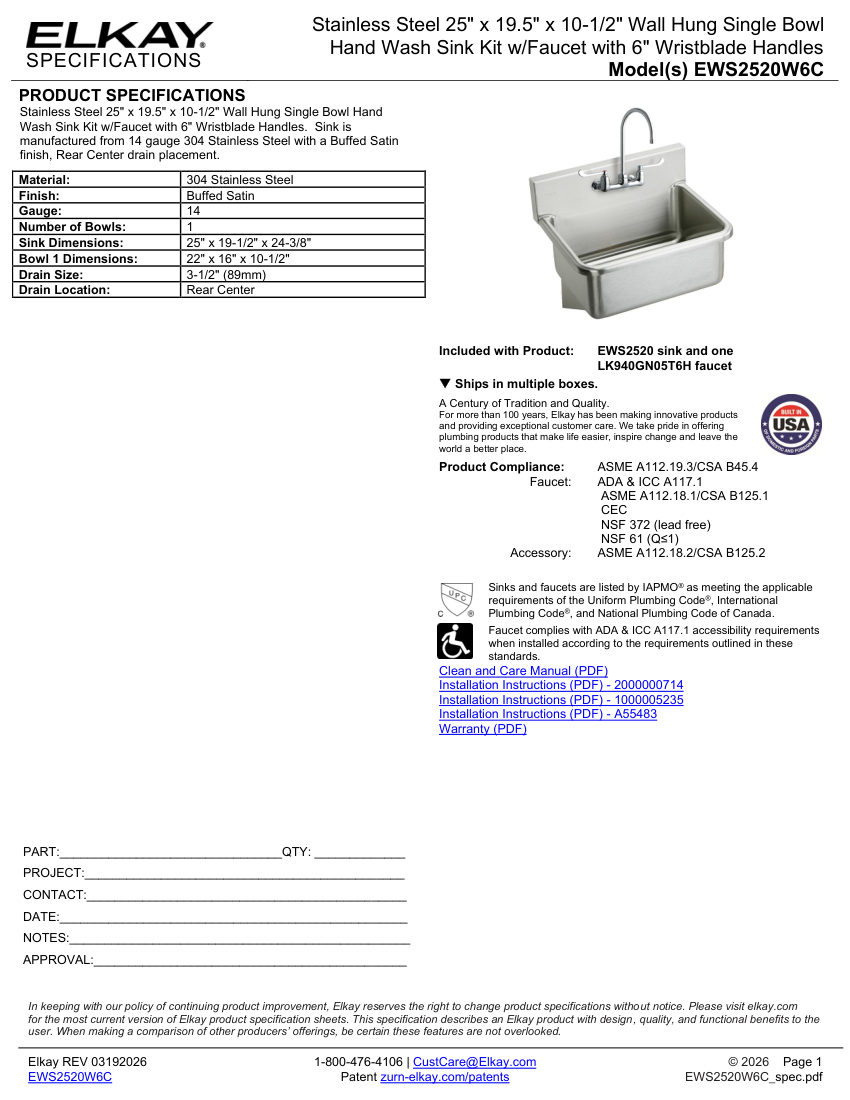

Elkay EWS2520W6C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EWS2520W6C
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS2520W6C
DescriptionElkay Wall Hung Single Bowl Hand Wash Sink Kit (Hand Wash Sink). Model EWS2520W6C. 14 gauge 304 Stainless Steel construction; Single bowl with rear center drain placement; Includes LK940GN05T6H faucet with 6" wristblade handles
Bowl dimensions22" x 16" x 10-1/2". material: 304 Stainless Steel
Connection size3-1/2" (89mm)
FinishBuffed Satin
MountingWall Hung
Dimensions25" x 19-1/2" x 24-3/8"
ComplianceASME A112.19.3/CSA B45.4, ADA & ICC A117.1, ASME A112.18.1/CSA B125.1, NSF 372, NSF 61.
