DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay SS 31" x 19.5" x 10EWS3120SACTMC

Elkay Wall Hung Single Bowl Hand Wash Sink Kit (Hand Wash Sink). Model EWS3120SACTMC. 14 gauge 304 Stainless Steel construction; Includes LKB722C sensor faucet and LK723 thermostatic mixing valve; Center drain placement

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWS3120SACTMC.pdfData sheet

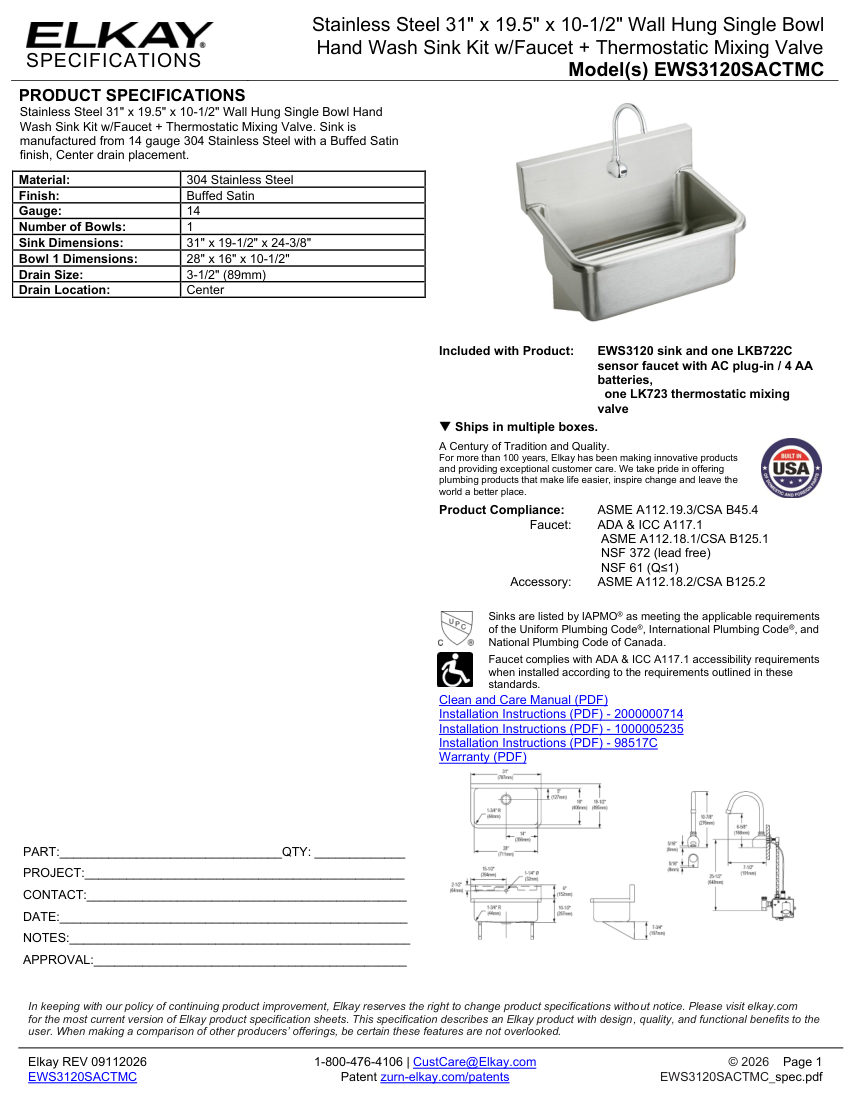

Elkay EWS3120SACTMC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EWS3120SACTMC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWS3120SACTMC
DescriptionElkay Wall Hung Single Bowl Hand Wash Sink Kit (Hand Wash Sink). Model EWS3120SACTMC. 14 gauge 304 Stainless Steel construction; Includes LKB722C sensor faucet and LK723 thermostatic mixing valve; Center drain placement
Bowl dimensions28" x 16" x 10-1/2". material: 304 Stainless Steel
Connection size3-1/2" (89mm)
FinishBuffed Satin
MountingWall Hung
Dimensions31" x 19-1/2" x 24-3/8"
ComplianceASME A112.19.3/CSA B45.4, ADA & ICC A117.1, ASME A112.18.1/CSA B125.1, NSF 372, NSF 61.
