DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEWSF26026KWSGEWSF26026KWSG

Elkay Double Station Surgical Scrub Sink Kit (Surgical Scrub Sink). Model EWSF26026KWSG. 16 gauge 304 Stainless Steel construction; Double bowl configuration (28" x 16-1/4" x 11" each); Rear center drain placement; Includes water knee activation and SplashBlock™ accessories. material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWSF26026KWSG.pdfData sheet

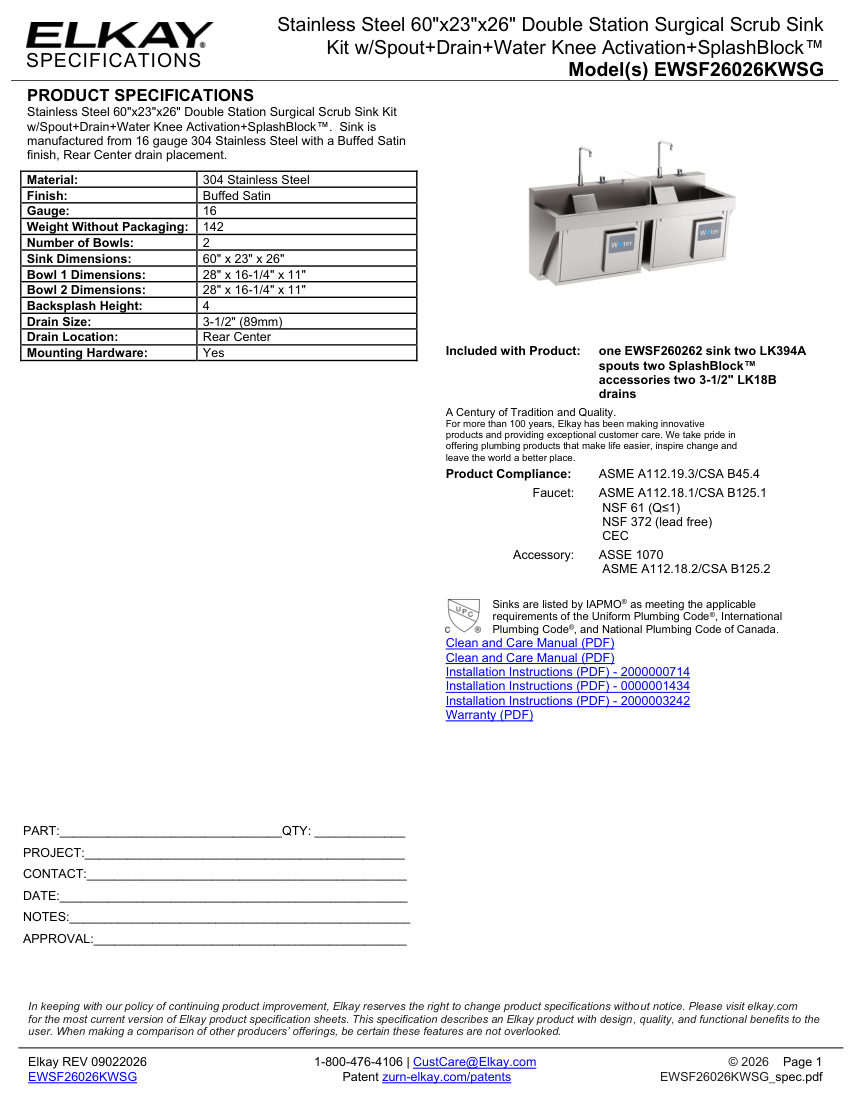

Elkay EWSF26026KWSG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EWSF26026KWSG
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWSF26026KWSG
DescriptionElkay Double Station Surgical Scrub Sink Kit (Surgical Scrub Sink). Model EWSF26026KWSG. 16 gauge 304 Stainless Steel construction; Double bowl configuration (28" x 16-1/4" x 11" each); Rear center drain placement; Includes water knee activation and SplashBlock™ accessories. material: 304 Stainless Steel
Connection size3-1/2" (89mm)
FinishBuffed Satin
MountingMounting Hardware Included
Dimensions60" x 23" x 26"
ComplianceASME A112.19.3/CSA B45.4, NSF 61, NSF 372, CEC, ASSE 1070, ASME A112.18.2/CSA B125.2.
