DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEWSF390263TSG

Elkay Triple Station Surgical Scrub Sink Kit (Surgical Scrub Sink). Model EWSF390263TSG. 16 gauge 304 Stainless Steel construction; Includes one Zurn AquaSense hydropower sensor faucet; Includes three 3-1/2" LK18B drains; Includes SplashBlock accessories. material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWSF390263TSG.pdfData sheet

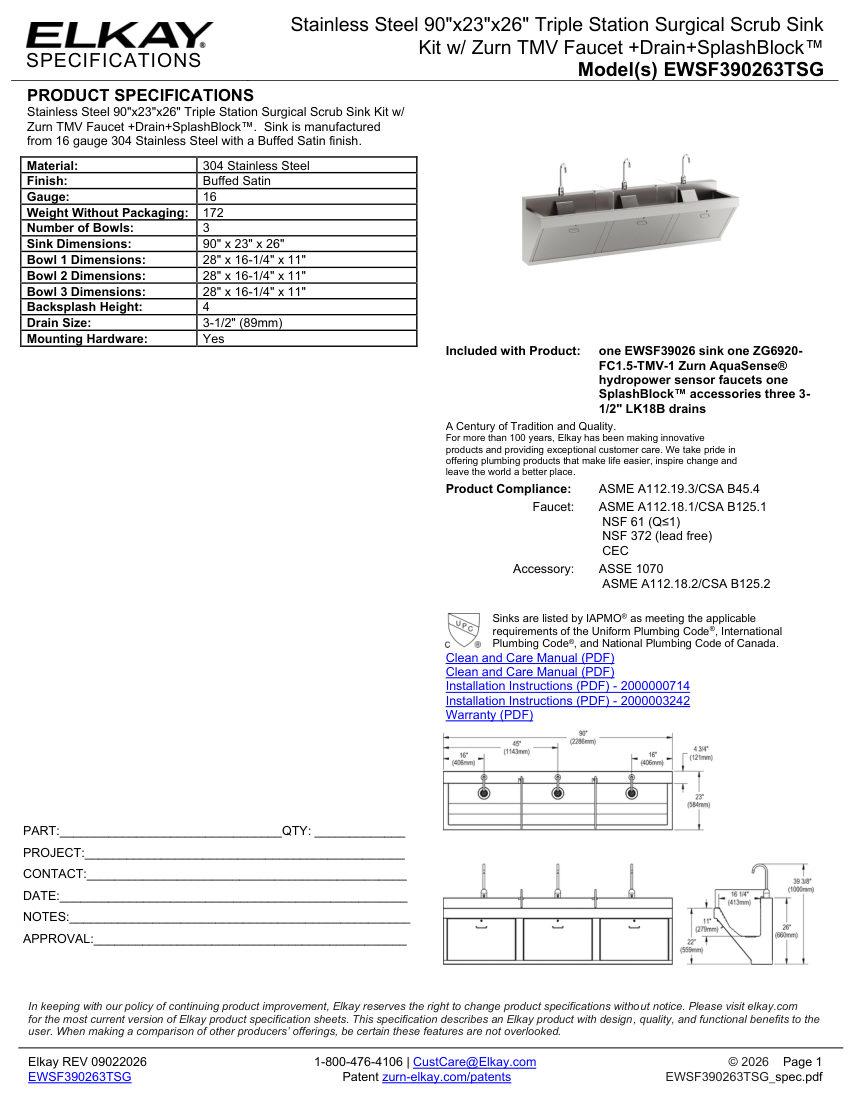

Elkay EWSF390263TSG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EWSF390263TSG
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWSF390263TSG
DescriptionElkay Triple Station Surgical Scrub Sink Kit (Surgical Scrub Sink). Model EWSF390263TSG. 16 gauge 304 Stainless Steel construction; Includes one Zurn AquaSense hydropower sensor faucet; Includes three 3-1/2" LK18B drains; Includes SplashBlock accessories. material: 304 Stainless Steel
Connection size3-1/2" (89mm)
FinishBuffed Satin
MountingMounting Hardware Included
Dimensions90" x 23" x 26"
ComplianceASME A112.19.3/CSA B45.4, NSF 61, NSF 372, CEC, ASSE 1070, ASME A112.18.2/CSA B125.2.
