DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay SS 33" x 16EWSFAD13620SACC

Elkay Wall Hung Single Station Surgeon Scrub Sink Kit (Surgeon Scrub Sink). Model EWSFAD13620SACC. 16 gauge 304 Stainless Steel construction; Single bowl with rear center drain placement; Includes LKB722C sensor faucet and LK723 mixing valve

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEWSFAD13620SACC.pdfData sheet

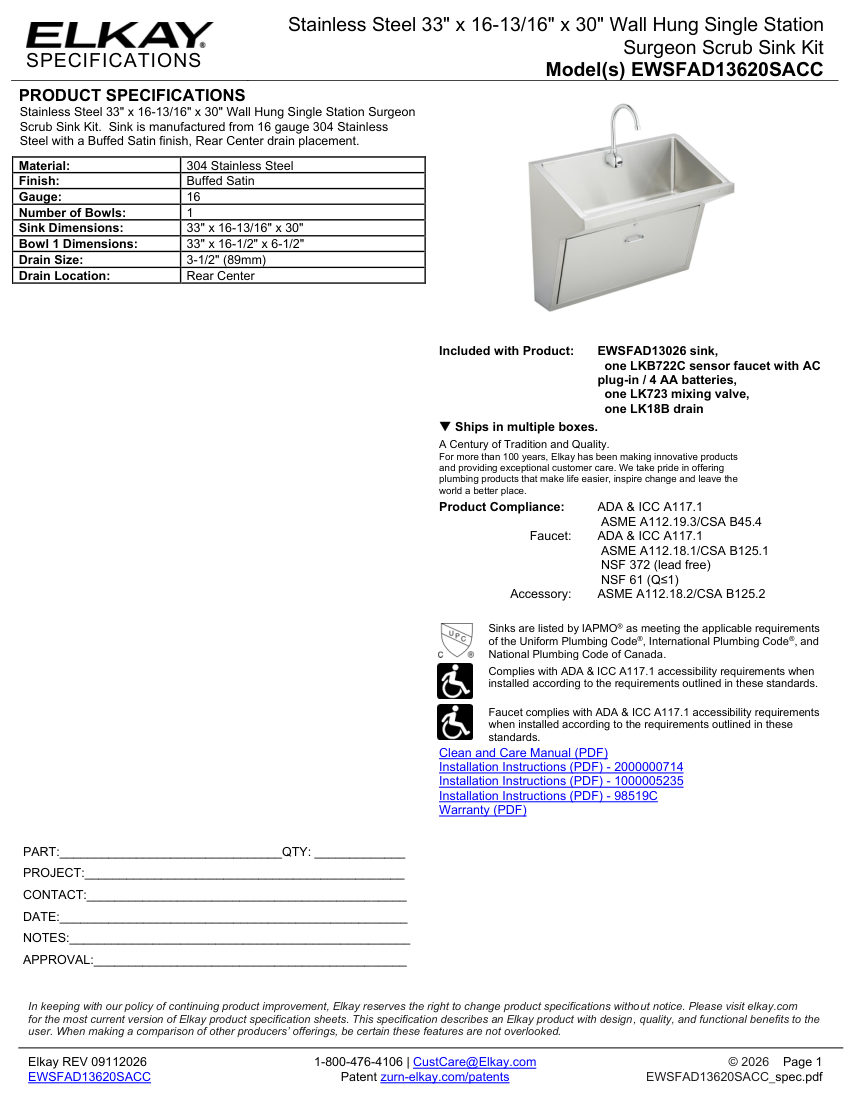

Elkay EWSFAD13620SACC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EWSFAD13620SACC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEWSFAD13620SACC
DescriptionElkay Wall Hung Single Station Surgeon Scrub Sink Kit (Surgeon Scrub Sink). Model EWSFAD13620SACC. 16 gauge 304 Stainless Steel construction; Single bowl with rear center drain placement; Includes LKB722C sensor faucet and LK723 mixing valve
Bowl dimensions33" x 16-1/2" x 6-1/2". material: 304 Stainless Steel
Connection size3-1/2" (89mm)
FinishBuffed Satin
MountingWall Hung
Dimensions33" x 16-13/16" x 30"
ComplianceADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF 372, NSF 61.
