DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEZFMP

Elkay Filter Maintenance Kit (Drinking Water Station). Model EZFMP. Compatible with single-level EZ / LZ filtered models; Includes WaterSentry 51600C 6,000-gallon filter; Requires 36 in. of space on left side for access; Operating temperature range 40-100°F (4-38°C). material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEZFMP.pdfData sheet

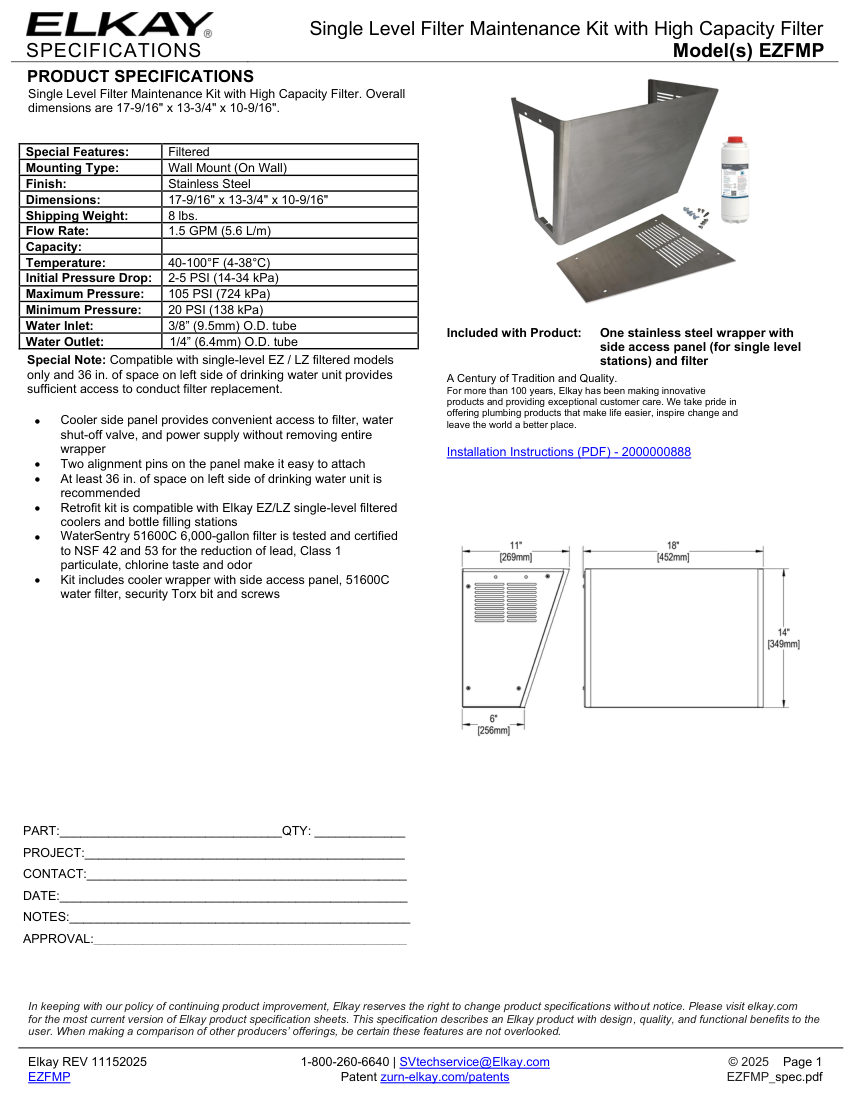

Elkay EZFMP cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EZFMP
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEZFMP
DescriptionElkay Filter Maintenance Kit (Drinking Water Station). Model EZFMP. Compatible with single-level EZ / LZ filtered models; Includes WaterSentry 51600C 6,000-gallon filter; Requires 36 in. of space on left side for access; Operating temperature range 40-100°F (4-38°C). material: Stainless Steel
Connection size3/8" (9.5mm) O.D. tube inlet, 1/4" (6.4mm) O.D. tube outlet
End connectionTube
Pressure RatingMax 105 PSI (724 kPa), Min 20 PSI (138 kPa)
Flow Rate1.5 GPM (5.6 L/m)
FinishStainless Steel.
