DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEZLSSN-EDFPBMV117K

Elkay Bottle Filling Station with Integral Fountain (Bottle Filling Station). Model EZLSSN-EDFPBMV117K. Non-Filtered, Non-Refrigerated; Ambient Water; Vandal Resistant Bubbler; Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEZLSSN-EDFPBMV117K.pdfData sheet

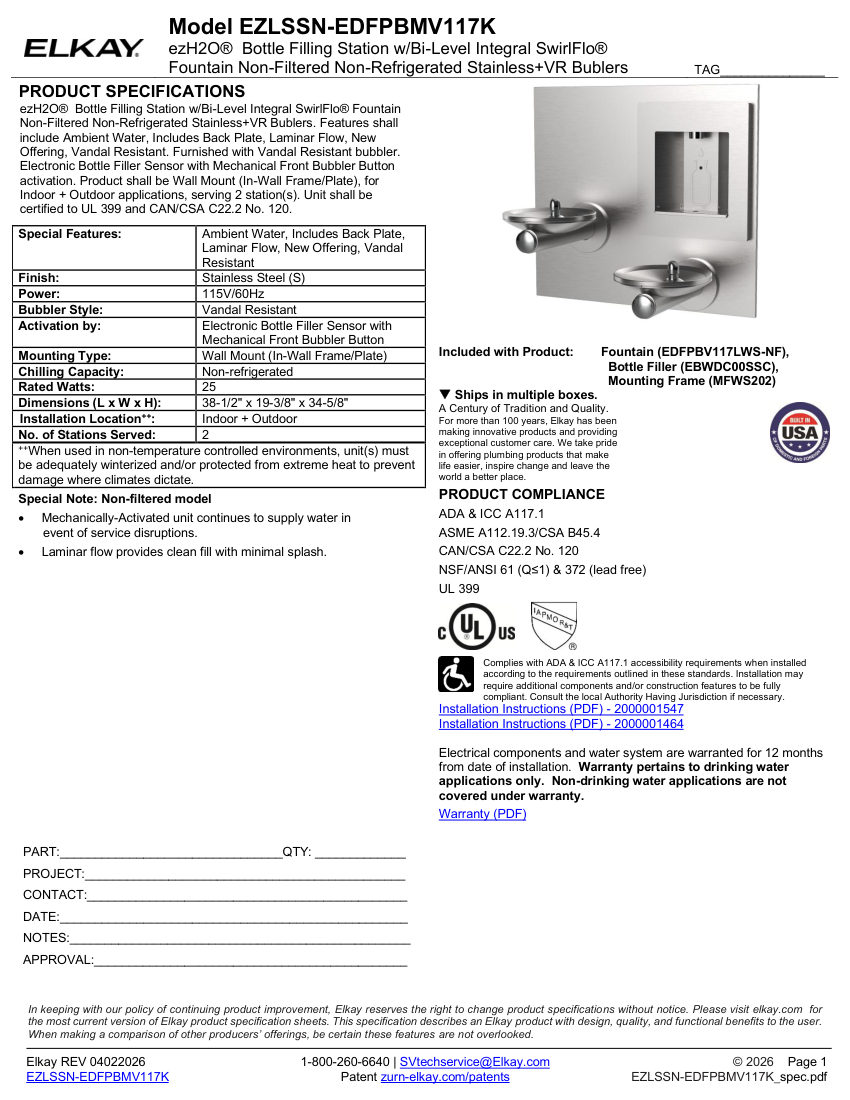

Elkay EZLSSN-EDFPBMV117K cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EZLSSN-EDFPBMV117K
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEZLSSN-EDFPBMV117K
DescriptionElkay Bottle Filling Station with Integral Fountain (Bottle Filling Station). Model EZLSSN-EDFPBMV117K. Non-Filtered, Non-Refrigerated; Ambient Water; Vandal Resistant Bubbler; Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button. material: Stainless Steel
FinishStainless Steel
MountingWall Mount (In-Wall Frame/Plate)
Dimensions38-1/2" x 19-3/8" x 34-5/8"
ComplianceUL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 61 & 372
Voltage115V/60Hz.
