DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEZO8WSSK

Elkay Refrigerated Bottle Filler with Water Cooler (Bottle Filling Station). Model EZO8WSSK. Hands Free Activation via Electronic Bottle Filler Sensor

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEZO8WSSK.pdfData sheet

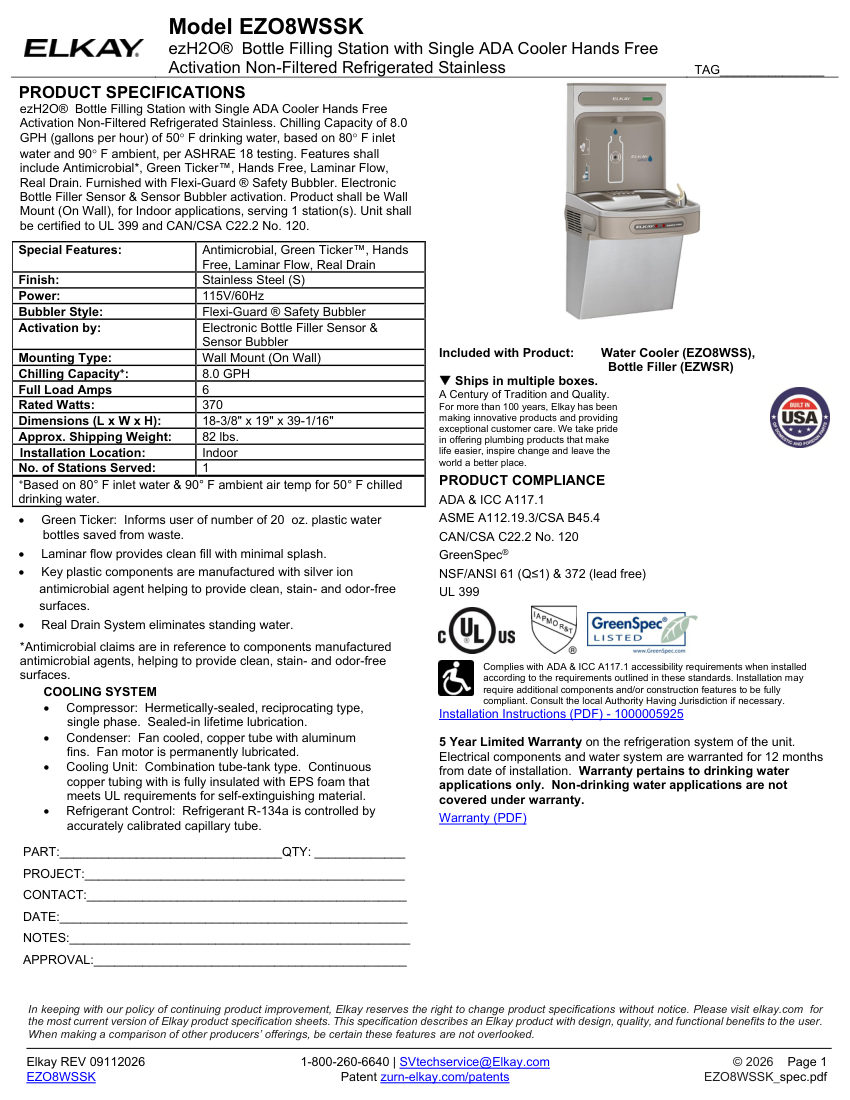

Elkay EZO8WSSK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EZO8WSSK
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEZO8WSSK
DescriptionElkay Refrigerated Bottle Filler with Water Cooler (Bottle Filling Station). Model EZO8WSSK. Hands Free Activation via Electronic Bottle Filler Sensor
Chilling Capacity8.0 GPH of 50°F water; Includes Flexi-Guard Safety Bubbler and Real Drain System
Rated Watts370W, Full Load Amps: 6A. material: Stainless Steel
Flow Rate8.0 GPH
FinishStainless Steel
MountingWall Mount (On Wall)
Dimensions18-3/8" x 19" x 39-1/16"
ComplianceUL 399, CAN/CSA C22.2 No. 120, ADA, ICC A117.1, ASME A112.19.3, NSF/ANSI 61 & 372.
