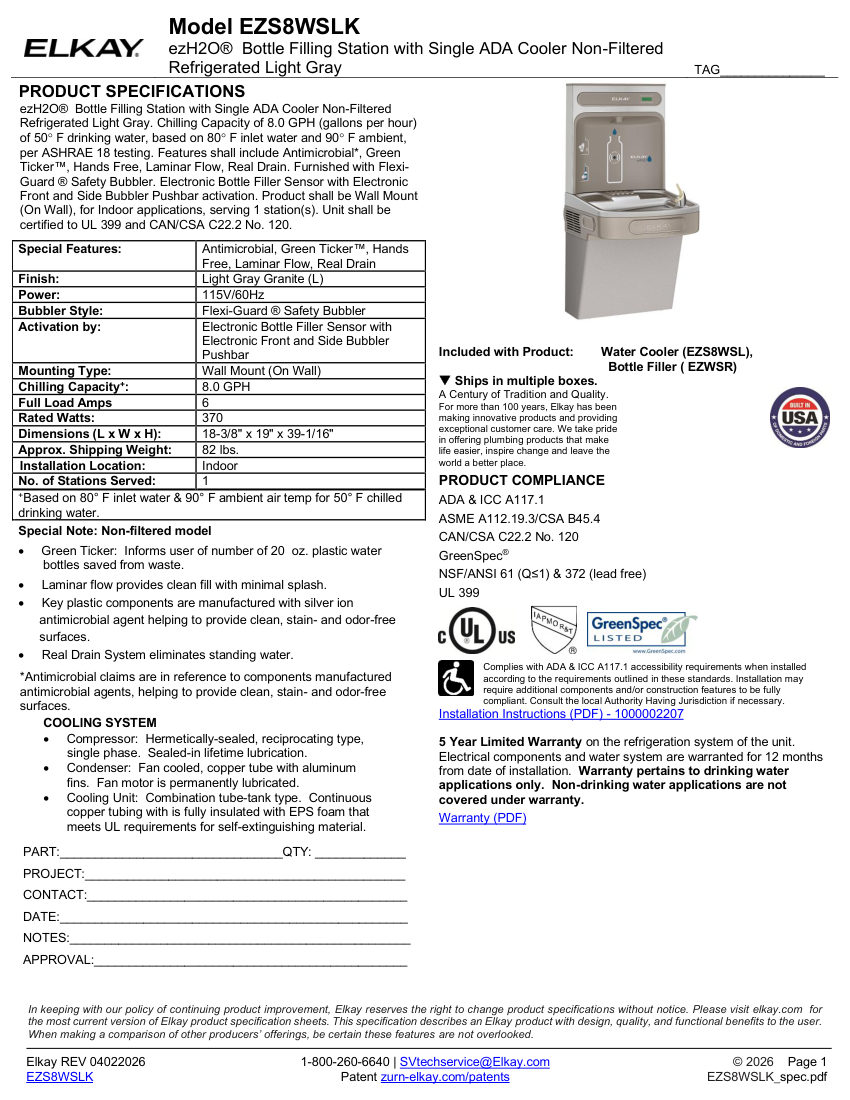

DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay EZS8WSLK WallEZS8WSLK

Name: Elkay Elkay EZS8WSLK Wall
Brand: Elkay
SKU: EZS8WSLK

Elkay Bottle Filling Station with ADA Cooler (Drinking Water). Model EZS8WSLK. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	EZS8WSLK
Description	Elkay Bottle Filling Station with ADA Cooler (Drinking Water). Model EZS8WSLK. Chilling Capacity: 8.0 GPH of 50°F water
Activation	Electronic Bottle Filler Sensor with Pushbar
Bubbler	Flexi-Guard Safety Bubbler
Features	Antimicrobial, Green Ticker, Laminar Flow, Real Drain. flowRate: 8.0 GPH
Finish	Light Gray Granite
Mounting	Wall Mount (On Wall)
Dimensions	18-3/8" x 19" x 39-1/16"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA, ICC A117.1, ASME A112.19.3, NSF/ANSI 61 & 372
Voltage	115V/60Hz.
