DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay 8 GPH BiEZWS-ERPBM28K

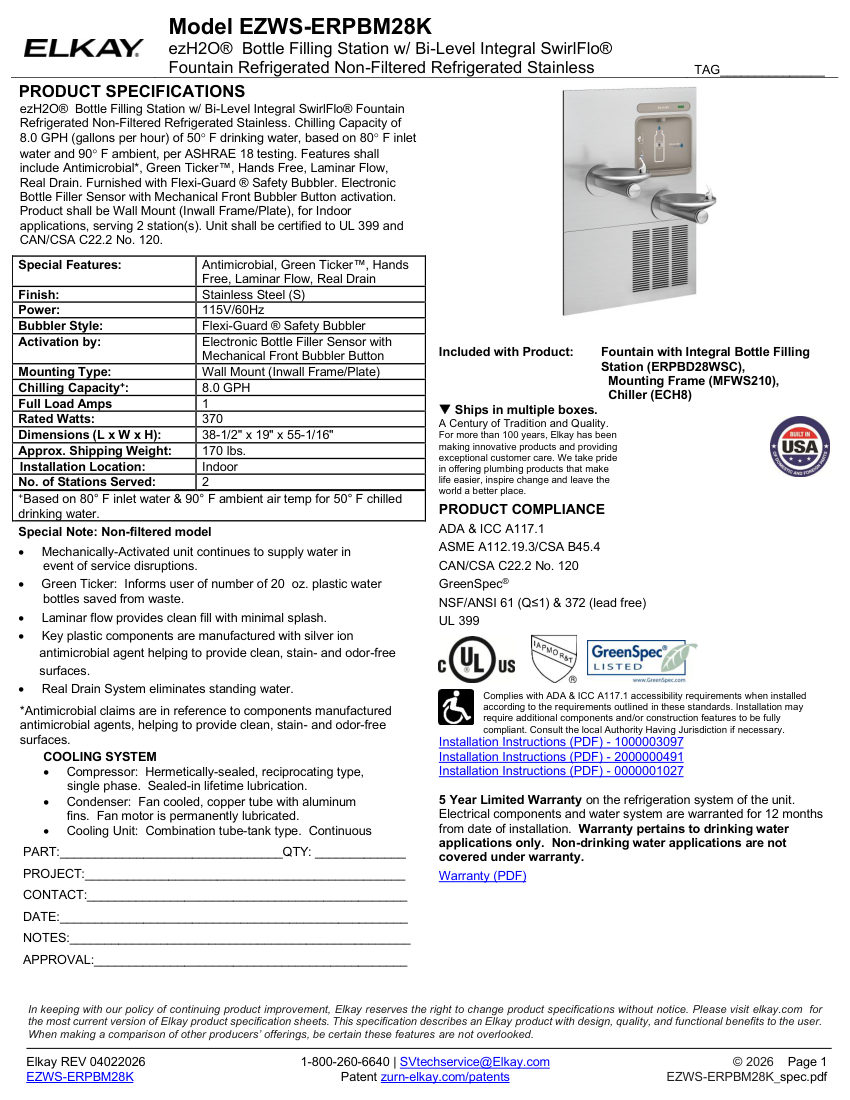

Name: Elkay Elkay 8 GPH Bi (EZWS-ERPBM28K)
Brand: Elkay
SKU: EZWS-ERPBM28K

Elkay Bottle Filling Station with Fountain (Drinking Water). Model EZWS-ERPBM28K. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	EZWS-ERPBM28K
Description	Elkay Bottle Filling Station with Fountain (Drinking Water). Model EZWS-ERPBM28K. Chilling Capacity: 8.0 GPH of 50°F water
Activation	Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button
Bubbler Style	Flexi-Guard Safety Bubbler
Stations Served	2. material: Stainless Steel
Flow Rate	8.0 GPH
Finish	Stainless Steel
Mounting	Wall Mount (Inwall Frame/Plate)
Dimensions	38-1/2" x 19" x 55-1/16"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 61 & 372.
