DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayEZWS-ERPBM8K

Elkay Bottle Filling Station with Integral Fountain (Drinking Water). Model EZWS-ERPBM8K. Refrigerated Non-Filtered

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEZWS-ERPBM8K.pdfData sheet

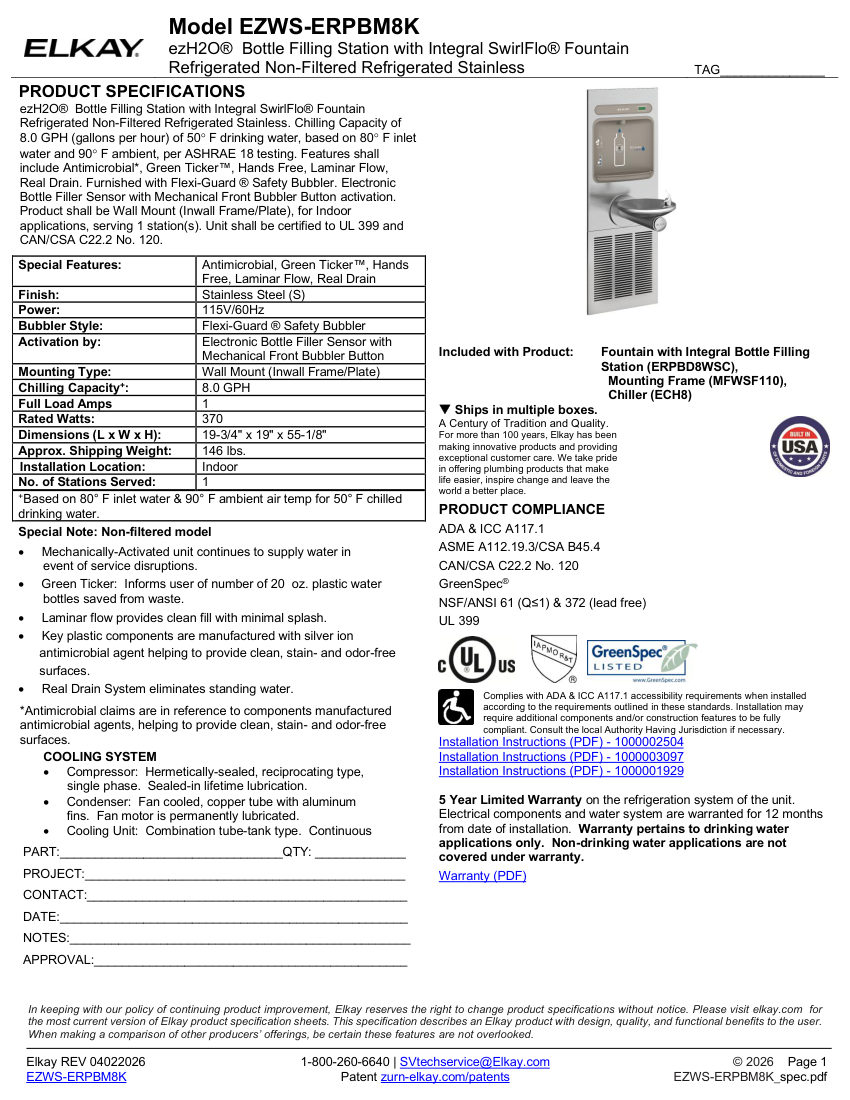

Elkay EZWS-ERPBM8K cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
EZWS-ERPBM8K
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEZWS-ERPBM8K
DescriptionElkay Bottle Filling Station with Integral Fountain (Drinking Water). Model EZWS-ERPBM8K. Refrigerated Non-Filtered
Chilling Capacity8.0 GPH
ActivationElectronic Bottle Filler Sensor with Mechanical Front Bubbler Button
Bubbler StyleFlexi-Guard Safety Bubbler. material: Stainless Steel
Flow Rate8.0 GPH
FinishStainless Steel
MountingWall Mount (Inwall Frame/Plate)
Dimensions19-3/4" x 19" x 55-1/8"
ComplianceUL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 61 & 372.
