ElkayLiv BuiltLBWD06BKK

Elkay Filtered and Chilled Water Dispenser (Water Dispenser). Model LBWD06BKK. Chilling capacity of 1.5 GPH at 50°F; Hands-free activation via Electronic Bottle Filler Sensor; Includes 2,250 gallon capacity filter certified for PFOA/PFOS reduction; Laminar flow design for minimal splash. flowRate: 1.5 GPH

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLBWD06BKK.pdfData sheet

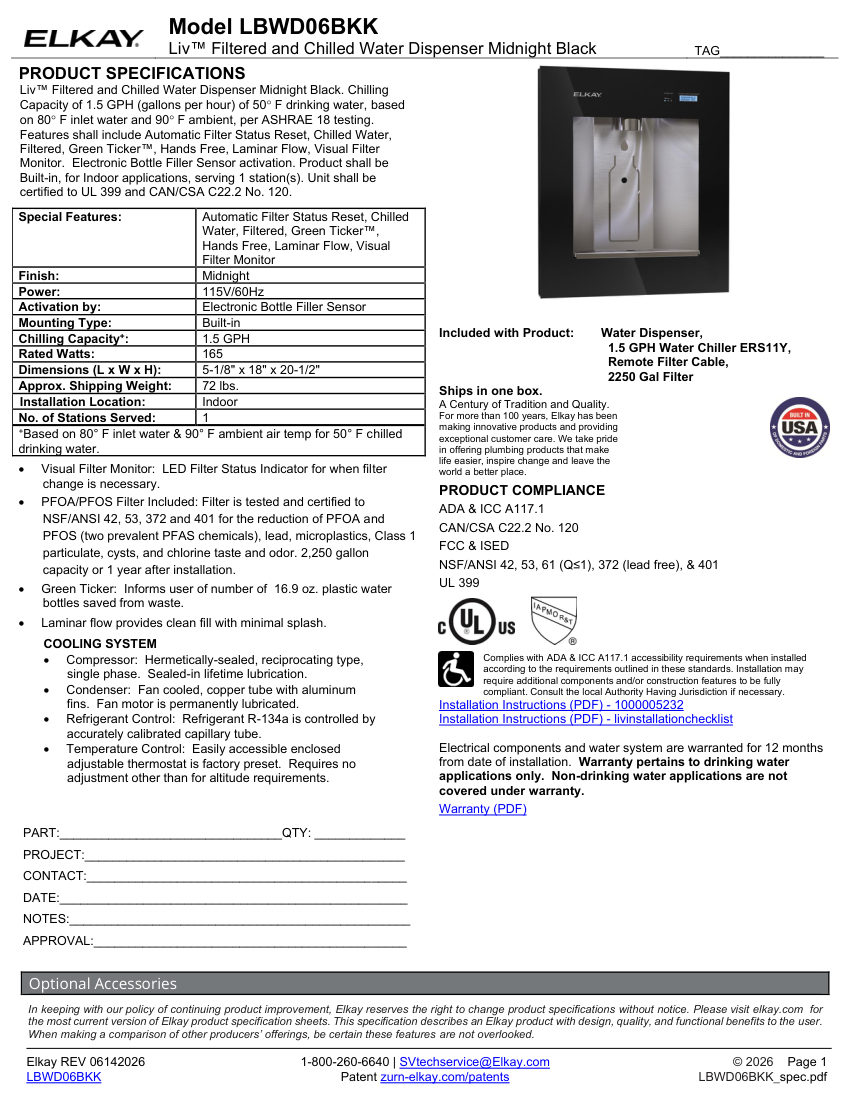

Elkay LBWD06BKK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LBWD06BKK
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLBWD06BKK
DescriptionElkay Filtered and Chilled Water Dispenser (Water Dispenser). Model LBWD06BKK. Chilling capacity of 1.5 GPH at 50°F; Hands-free activation via Electronic Bottle Filler Sensor; Includes 2,250 gallon capacity filter certified for PFOA/PFOS reduction; Laminar flow design for minimal splash. flowRate: 1.5 GPH
FinishMidnight Black
MountingBuilt-in
Dimensions5-1/8" x 18" x 20-1/2"
ComplianceUL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 42, 53, 61, 372, 401, ADA & ICC A117.1
Voltage115V/60Hz.
