DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayLK290

Elkay Drain Fitting. Model LK290. Center outlet for triple bowl sinks with offset center drain; Compatible with sink models CMR4322, EFU402010, ELUH3920, ELUH4020, LCR4322, LGR4322, and PSMR4322; Shipping weight is 5 lbs; Includes 1-1/2" O.D. chrome-plated brass tubing and tailpiece. material: Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLK290.pdfData sheet

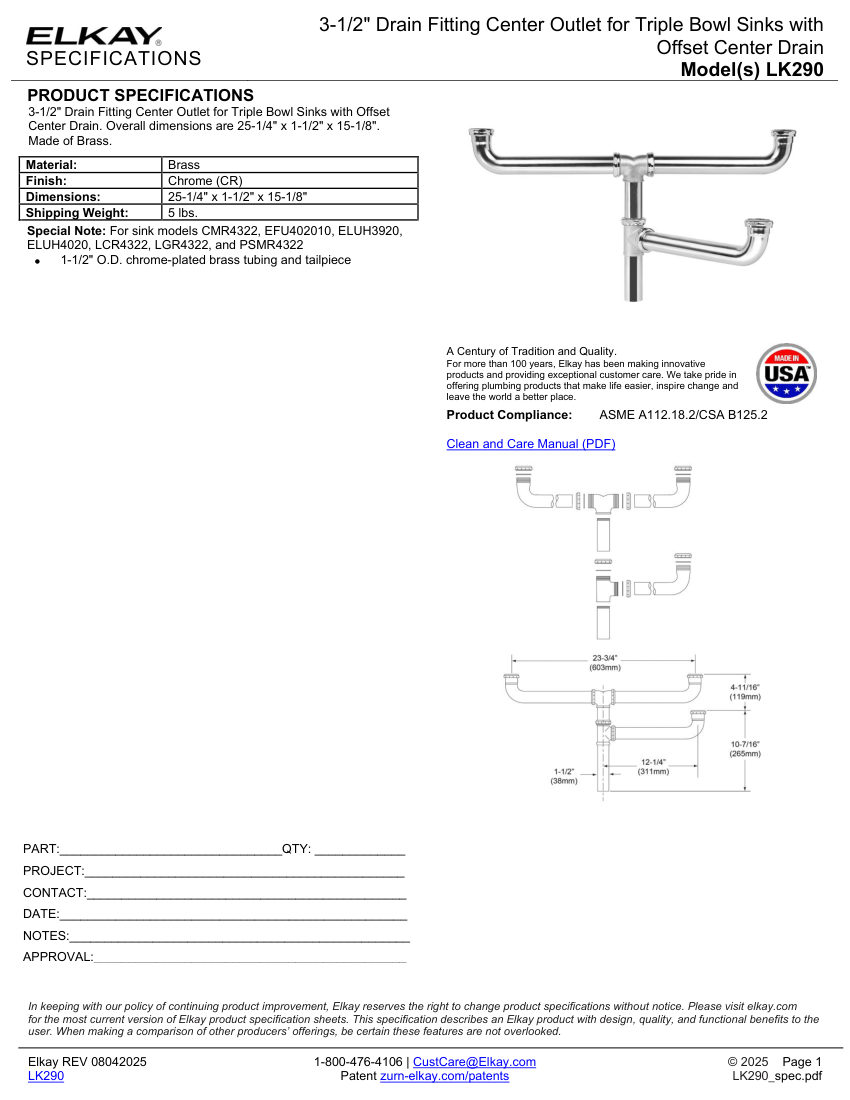

Elkay LK290 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LK290
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLK290
DescriptionElkay Drain Fitting. Model LK290. Center outlet for triple bowl sinks with offset center drain; Compatible with sink models CMR4322, EFU402010, ELUH3920, ELUH4020, LCR4322, LGR4322, and PSMR4322; Shipping weight is 5 lbs; Includes 1-1/2" O.D. chrome-plated brass tubing and tailpiece. material: Brass
Connection size3-1/2"
End connection1-1/2" O.D. chrome-plated brass tubing and tailpiece
FinishChrome (CR)
Dimensions25-1/4" x 1-1/2" x 15-1/8"
ComplianceASME A112.18.2/CSA B125.2.
