ElkayElkay Drain Fitting 3LK35L

Elkay Drain Fitting with Strainer Basket, Tailpiece, and Elbow (Drain Fitting). Model LK35L. Includes conical strainer basket with metal stem and rubber seal; Features 90-degree chrome-plated cast brass elbow for wheelchair accessibility; Replacement strainer basket part number 72002160; Shipping weight is 2 lbs. material: Type 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLK35L.pdfData sheet

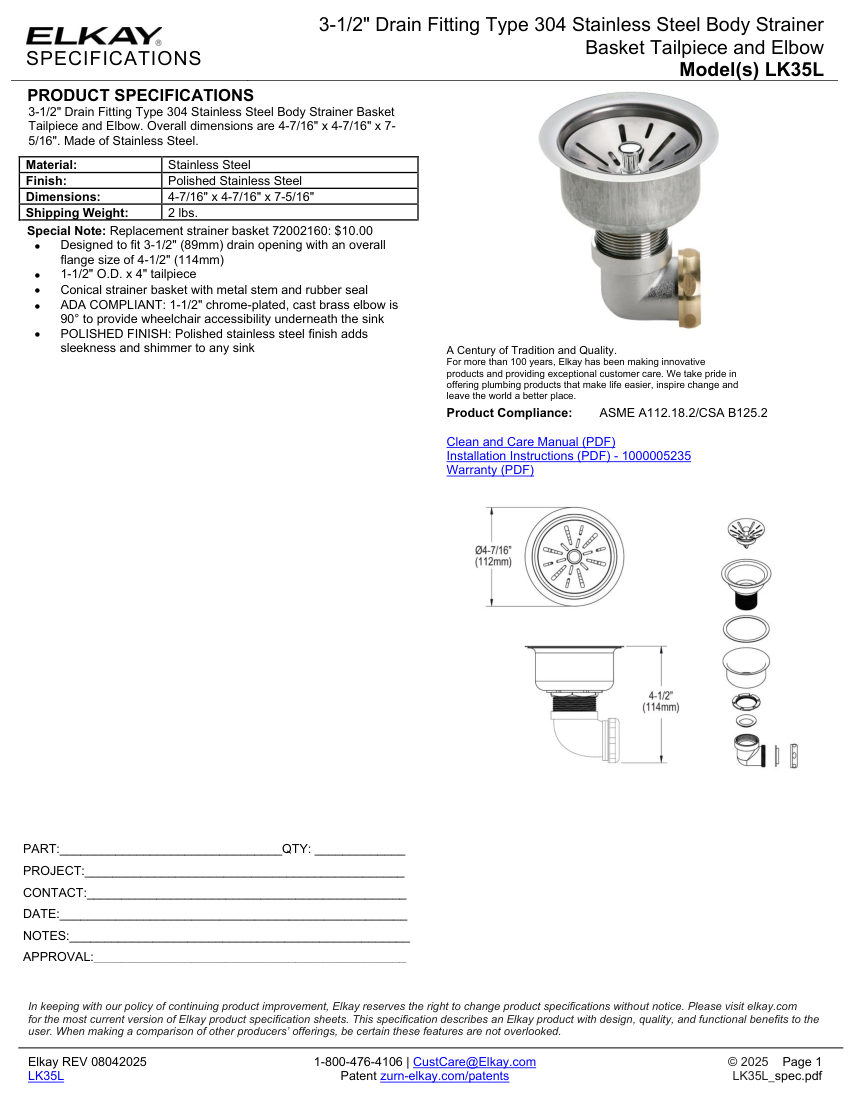

Elkay LK35L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LK35L
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLK35L
DescriptionElkay Drain Fitting with Strainer Basket, Tailpiece, and Elbow (Drain Fitting). Model LK35L. Includes conical strainer basket with metal stem and rubber seal; Features 90-degree chrome-plated cast brass elbow for wheelchair accessibility; Replacement strainer basket part number 72002160; Shipping weight is 2 lbs. material: Type 304 Stainless Steel
Connection size3-1/2" (89mm) drain opening
End connection1-1/2" O.D. x 4" tailpiece
FinishPolished Stainless Steel
MountingFlange size 4-1/2" (114mm)
Dimensions4-7/16" x 4-7/16" x 7-5/16".
