DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayLKDVR208513LCFFC

Elkay Vandal Resistant Deck Mount Faucet (Faucet). Model LKDVR208513LCFFC. Single Hole 12-1/2" Vandal Resistant Deck Mount; Gooseneck Spout with 0° Swing Rotation; Quarter Turn Ceramic Disc Cold Valve; Includes Bubbler and Vandal-resistant Filtration Kit. material: Chrome-plated Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLKDVR208513LCFFC.pdfData sheet

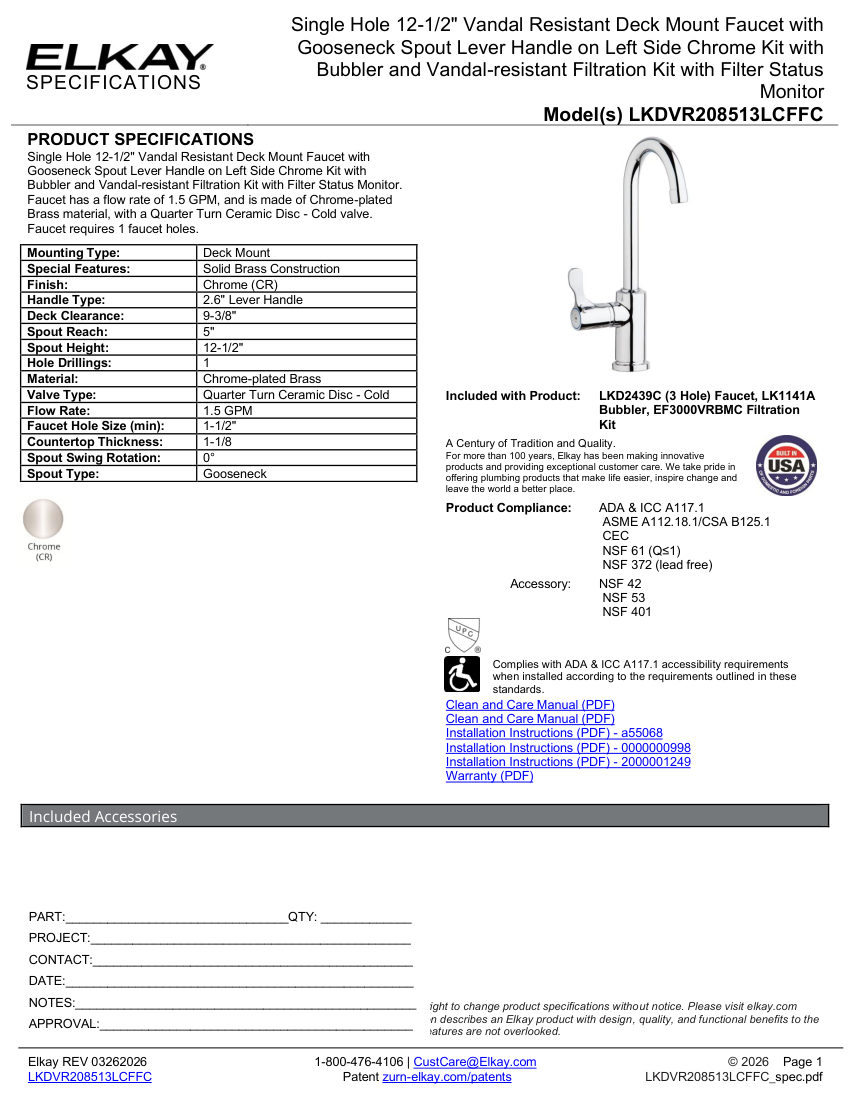

Elkay LKDVR208513LCFFC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LKDVR208513LCFFC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLKDVR208513LCFFC
DescriptionElkay Vandal Resistant Deck Mount Faucet (Faucet). Model LKDVR208513LCFFC. Single Hole 12-1/2" Vandal Resistant Deck Mount; Gooseneck Spout with 0° Swing Rotation; Quarter Turn Ceramic Disc Cold Valve; Includes Bubbler and Vandal-resistant Filtration Kit. material: Chrome-plated Brass
Flow Rate1.5 GPM
FinishChrome
MountingDeck Mount
Dimensions12-1/2" Spout Height, 5" Spout Reach, 9-3/8" Deck Clearance
ComplianceADA, ICC A117.1, ASME A112.18.1, CSA B125.1, CEC, NSF 61, NSF 372, NSF 42, NSF 53, NSF 401.
