DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayLMABF8L Wall Mount Filtered Drinking Fountain ADA CoolerLMABF8L

Elkay Wall Mount Filtered Drinking Fountain (Drinking Fountain). Model LMABF8L. Mechanical Front and Side Bubbler Pushbar activation; Flexi-Guard Safety Bubbler; Filtered water with standard filter included; Chilling capacity of 8.0 GPH at 50°F. flowRate: 8.0 GPH

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLMABF8L.pdfData sheet

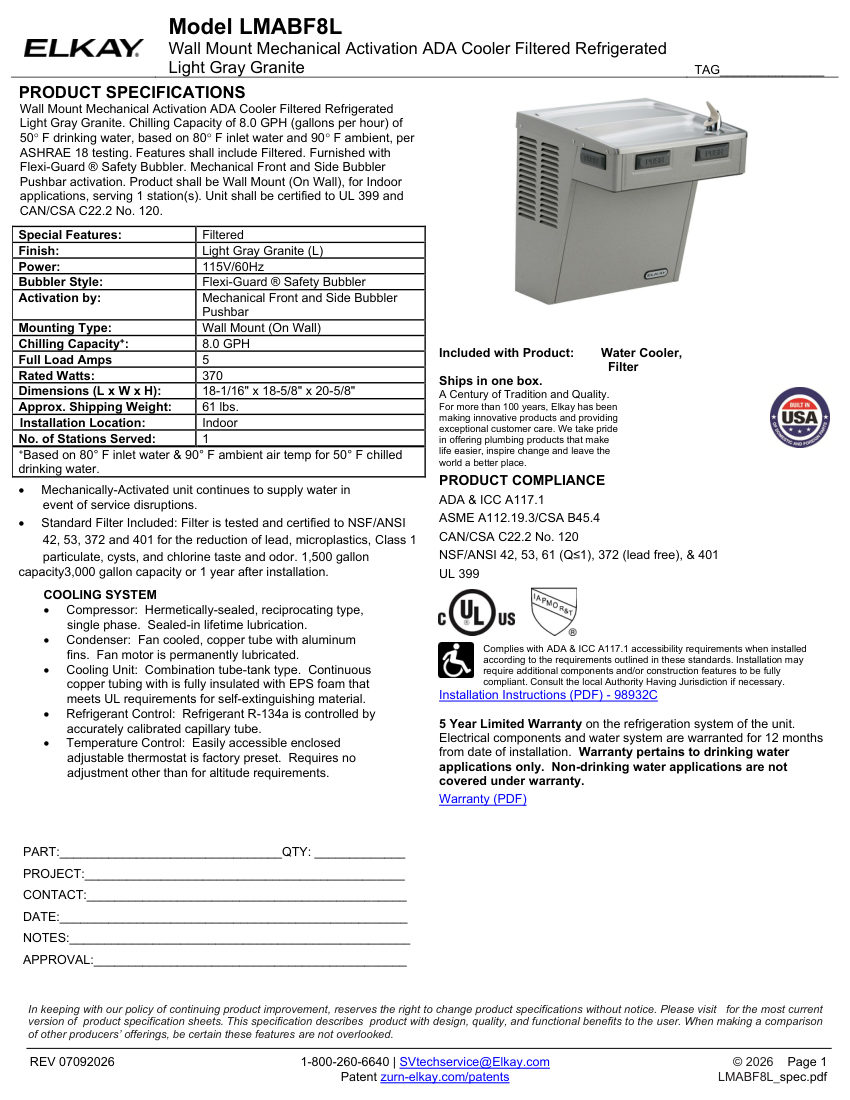

Elkay LMABF8L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LMABF8L
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLMABF8L
DescriptionElkay Wall Mount Filtered Drinking Fountain (Drinking Fountain). Model LMABF8L. Mechanical Front and Side Bubbler Pushbar activation; Flexi-Guard Safety Bubbler; Filtered water with standard filter included; Chilling capacity of 8.0 GPH at 50°F. flowRate: 8.0 GPH
FinishLight Gray Granite
MountingWall Mount (On Wall)
Dimensions18-1/16" x 18-5/8" x 20-5/8"
ComplianceUL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 42, 53, 61, 372, 401
Voltage115V/60Hz.
