DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED
ElkaySoft Sides LNTEM8K InLNTEM8K
Elkay Bi-level ADA Fountain (Drinking Fountain). Model LNTEM8K. Chilling Capacity: 8.0 GPH of 50°F water
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Elkay
- Catalog no.
- LNTEM8K
- Product type
- Sinks/Drinking Fountains
- MasterFormat
- 22

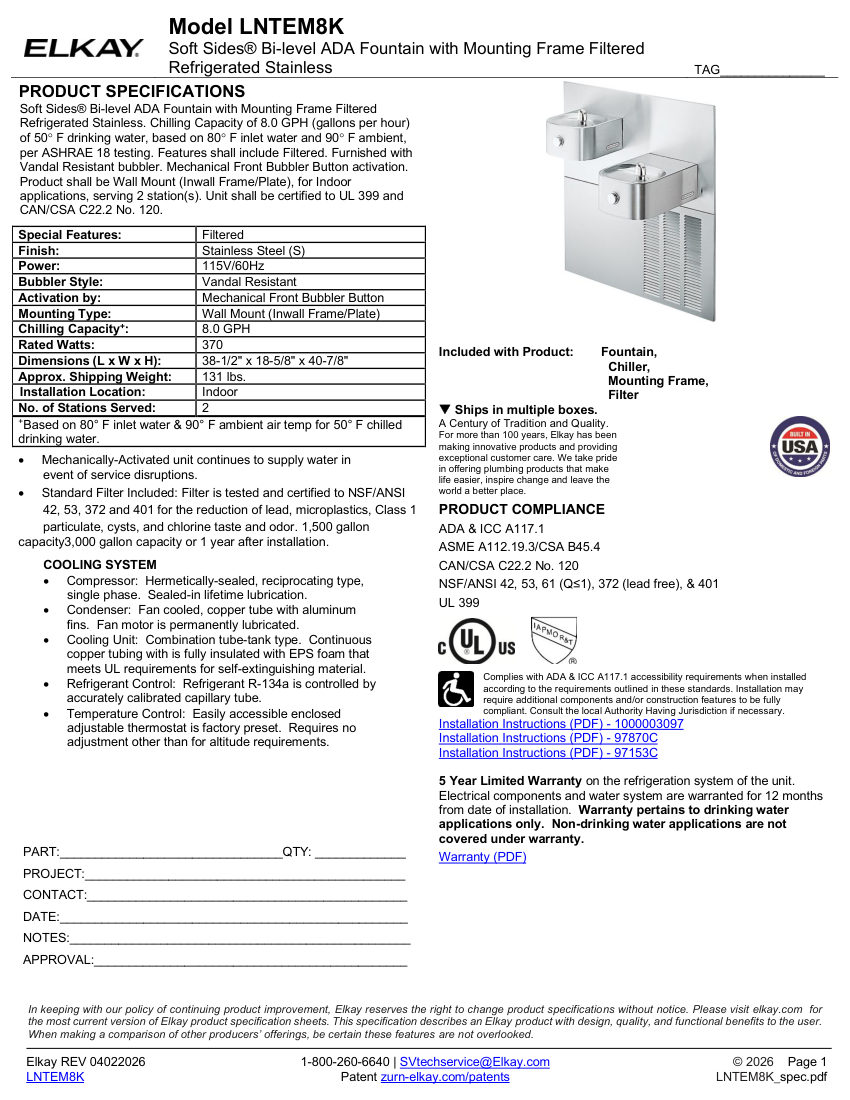

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | LNTEM8K |
|---|---|
| Description | Elkay Bi-level ADA Fountain (Drinking Fountain). Model LNTEM8K. Chilling Capacity: 8.0 GPH of 50°F water |
| Activation | Mechanical Front Bubbler Button |
| Bubbler Style | Vandal Resistant |
| Filter | Included, certified to NSF/ANSI 42, 53, 372, 401. material: Stainless Steel |
| Flow Rate | 8.0 GPH |
| Finish | Stainless Steel |
| Mounting | Wall Mount (Inwall Frame/Plate) |
| Dimensions | 38-1/2" x 18-5/8" x 40-7/8" |
| Compliance | UL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 42, 53, 61, 372, 401. |
