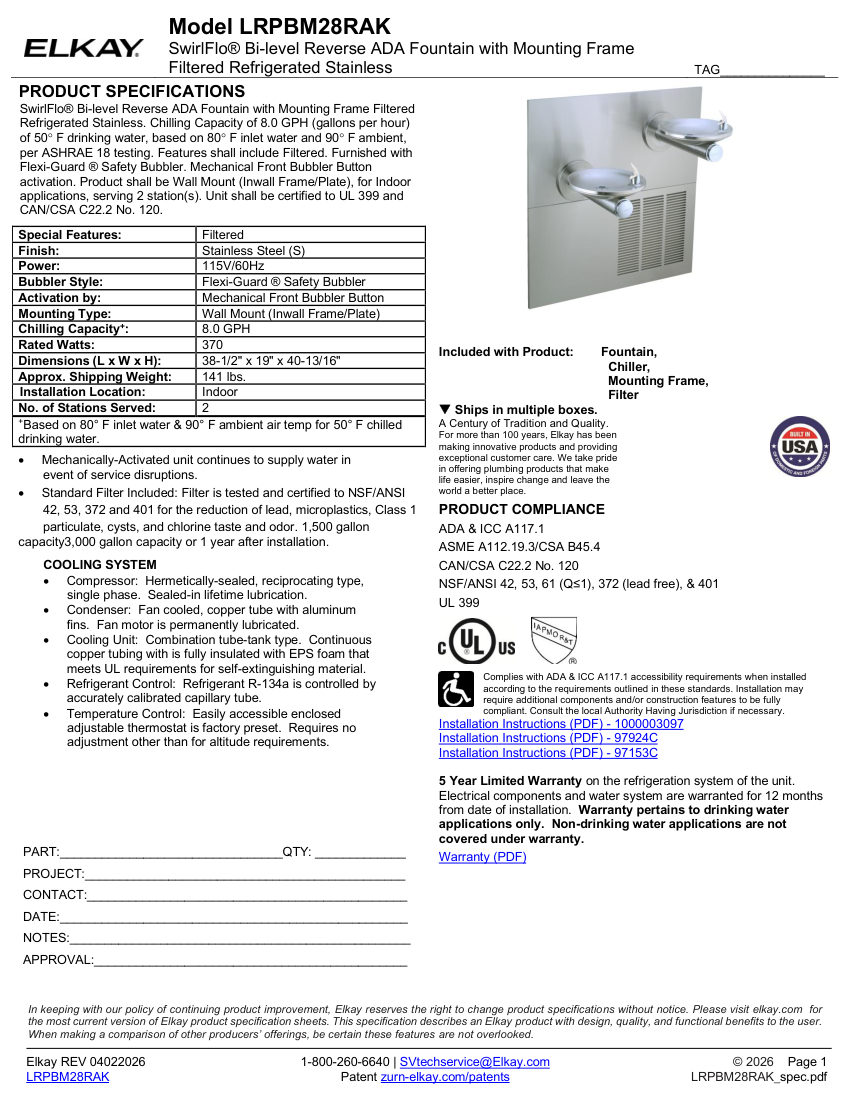

ElkaySwirlFlo LRPBM28RAK In‑Wall ADA Bi‑Level Filtered FountainLRPBM28RAK

Name: Elkay SwirlFlo LRPBM28RAK In‑Wall ADA Bi‑Level Filtered Fountain
Brand: Elkay
SKU: LRPBM28RAK

Elkay In-Wall ADA Bi-Level Filtered Fountain (Drinking Fountain). Model LRPBM28RAK. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LRPBM28RAK
Description	Elkay In-Wall ADA Bi-Level Filtered Fountain (Drinking Fountain). Model LRPBM28RAK. Chilling Capacity: 8.0 GPH of 50°F water
Rated Watts	370
Activation	Mechanical Front Bubbler Button
Bubbler Style	Flexi-Guard Safety Bubbler. material: Stainless Steel
Flow Rate	8.0 GPH
Finish	Stainless Steel
Mounting	Wall Mount (Inwall Frame/Plate)
Dimensions	38-1/2" x 19" x 40-13/16"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 42, 53, 61, 372, 401.
