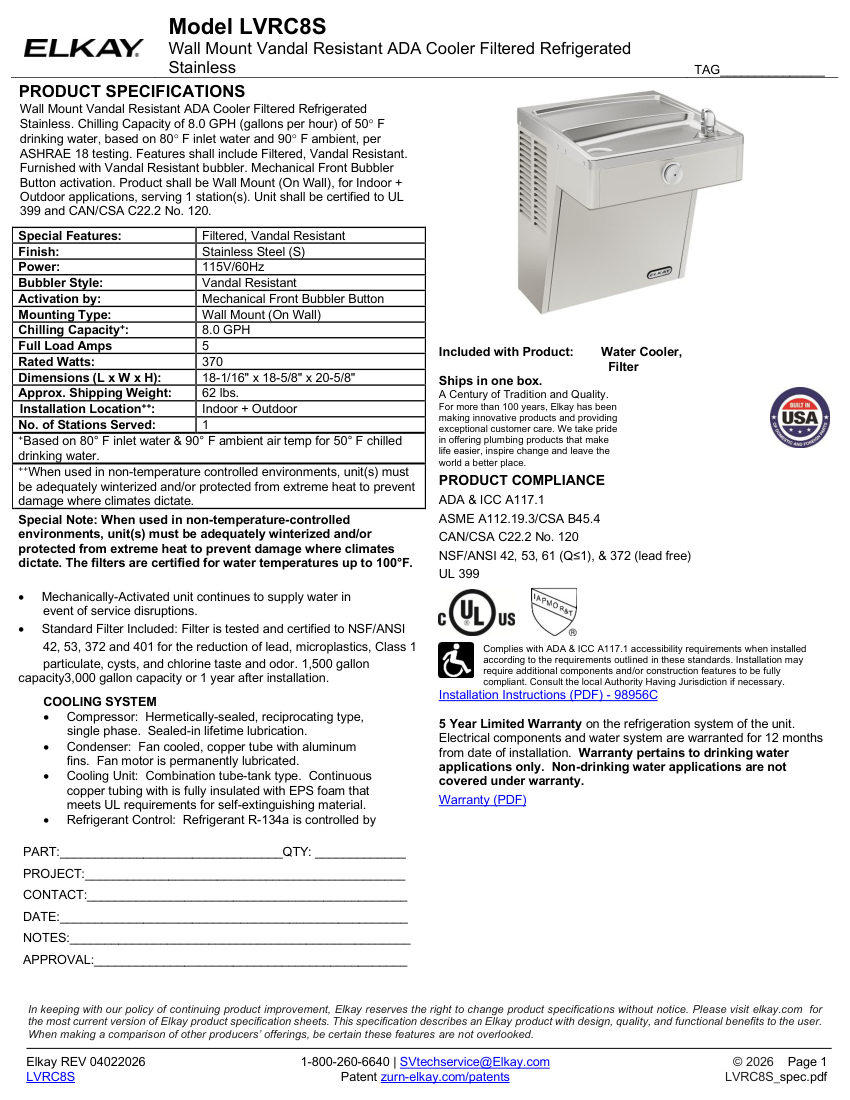

ElkayFiltered 8 GPH Wall Mount Vandal Resistant ADA Cooler VRC FamilyLVRC8S

Name: Elkay Filtered 8 GPH Wall Mount Vandal Resistant ADA Cooler VRC Family (LVRC8S)
Brand: Elkay
SKU: LVRC8S

Elkay Wall Mount Vandal Resistant ADA Cooler (Drinking Water Cooler). Model LVRC8S. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LVRC8S
Description	Elkay Wall Mount Vandal Resistant ADA Cooler (Drinking Water Cooler). Model LVRC8S. Chilling Capacity: 8.0 GPH of 50°F water
Activation	Mechanical Front Bubbler Button
Bubbler Style	Vandal Resistant
Included Filter	NSF/ANSI 42, 53, 372, 401 certified. material: Stainless Steel
Flow Rate	8.0 GPH
Finish	Stainless Steel
Mounting	Wall Mount (On Wall)
Dimensions	18-1/16" x 18-5/8" x 20-5/8"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA, ICC A117.1, ASME A112.19.3, NSF/ANSI 42, 53, 61, 372.
