DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayWall Mount GreenSpec ADA VandalLVRCGRN8

Elkay Wall Mount Refrigerated Water Cooler (Water Cooler). Model LVRCGRN8. Chilling capacity of 8.0 GPH at 50°F; Vandal Resistant StreamSaver bubbler with mechanical front button activation; Includes filtered water system with 1,500-3,000 gallon capacity; Rated power consumption of 260 Watts. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLVRCGRN8.pdfData sheet

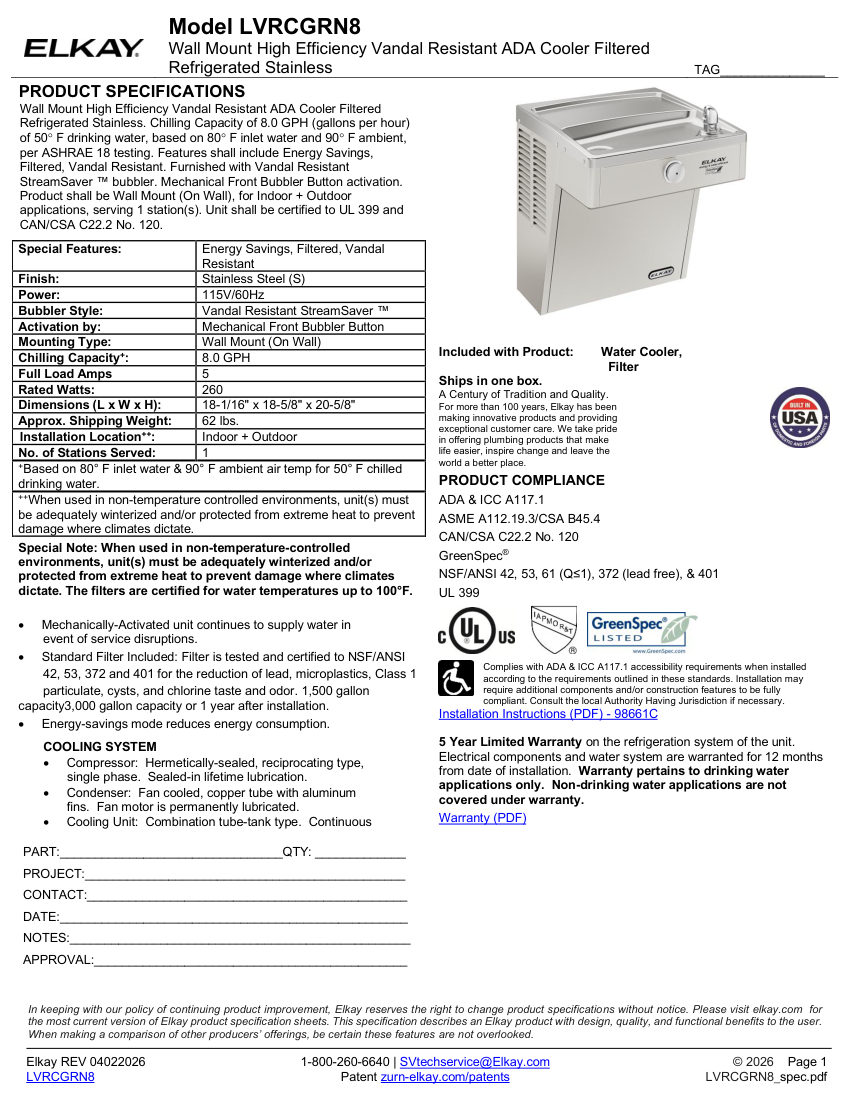

Elkay LVRCGRN8 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LVRCGRN8
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLVRCGRN8
DescriptionElkay Wall Mount Refrigerated Water Cooler (Water Cooler). Model LVRCGRN8. Chilling capacity of 8.0 GPH at 50°F; Vandal Resistant StreamSaver bubbler with mechanical front button activation; Includes filtered water system with 1,500-3,000 gallon capacity; Rated power consumption of 260 Watts. material: Stainless Steel
Flow Rate8.0 GPH
FinishStainless Steel
MountingWall Mount (On Wall)
Dimensions18-1/16" x 18-5/8" x 20-5/8"
ComplianceUL 399, CAN/CSA C22.2 No. 120, ADA, ICC A117.1, ASME A112.19.3, NSF/ANSI 42, 53, 61, 372, 401.
