DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayOn Wall BiLVRCTL8SC

Elkay Wall Mount Vandal Resistant Bi-level ADA Cooler (Drinking Water Dispenser). Model LVRCTL8SC. Chilling Capacity: 8.0 GPH of 50°F water

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLVRCTL8SC.pdfData sheet

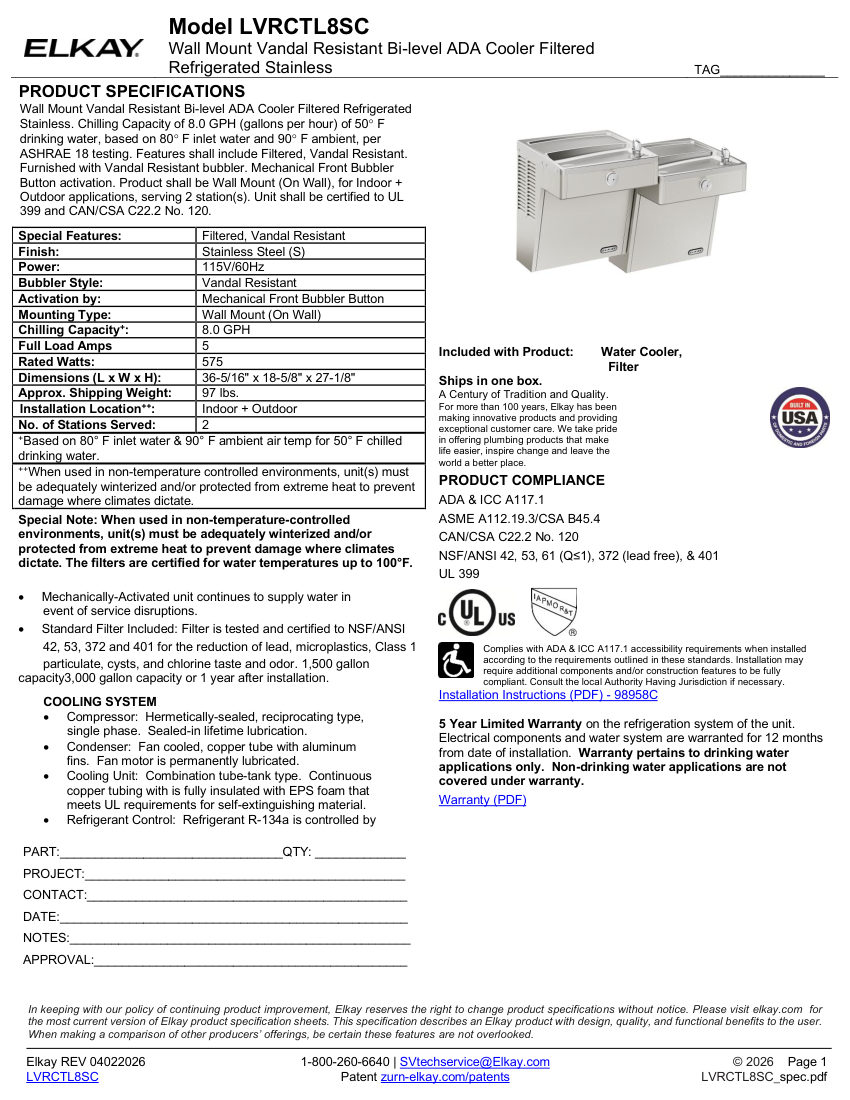

Elkay LVRCTL8SC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LVRCTL8SC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLVRCTL8SC
DescriptionElkay Wall Mount Vandal Resistant Bi-level ADA Cooler (Drinking Water Dispenser). Model LVRCTL8SC. Chilling Capacity: 8.0 GPH of 50°F water
ActivationMechanical Front Bubbler Button
Bubbler StyleVandal Resistant
FilterIncluded, 1,500 gallon capacity. material: Stainless Steel
Flow Rate8.0 GPH
FinishStainless Steel
MountingWall Mount (On Wall)
Dimensions36-5/16" x 18-5/8" x 27-1/8"
ComplianceUL 399, CAN/CSA C22.2 No. 120, ADA, ICC A117.1, ASME A112.19.3, NSF/ANSI 42, 53, 61, 372, 401.
