DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayOn Wall VandalLVRCTL8WSK

Elkay Vandal-Resistant Bottle Filling Station & Bi-Level Cooler (Water Cooler). Model LVRCTL8WSK. Chilling capacity of 8.0 GPH at 50°F; Serves 2 stations; Includes filtered water with visual filter monitor; Vandal-resistant bubbler with electronic bottle filler button. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLVRCTL8WSK.pdfData sheet

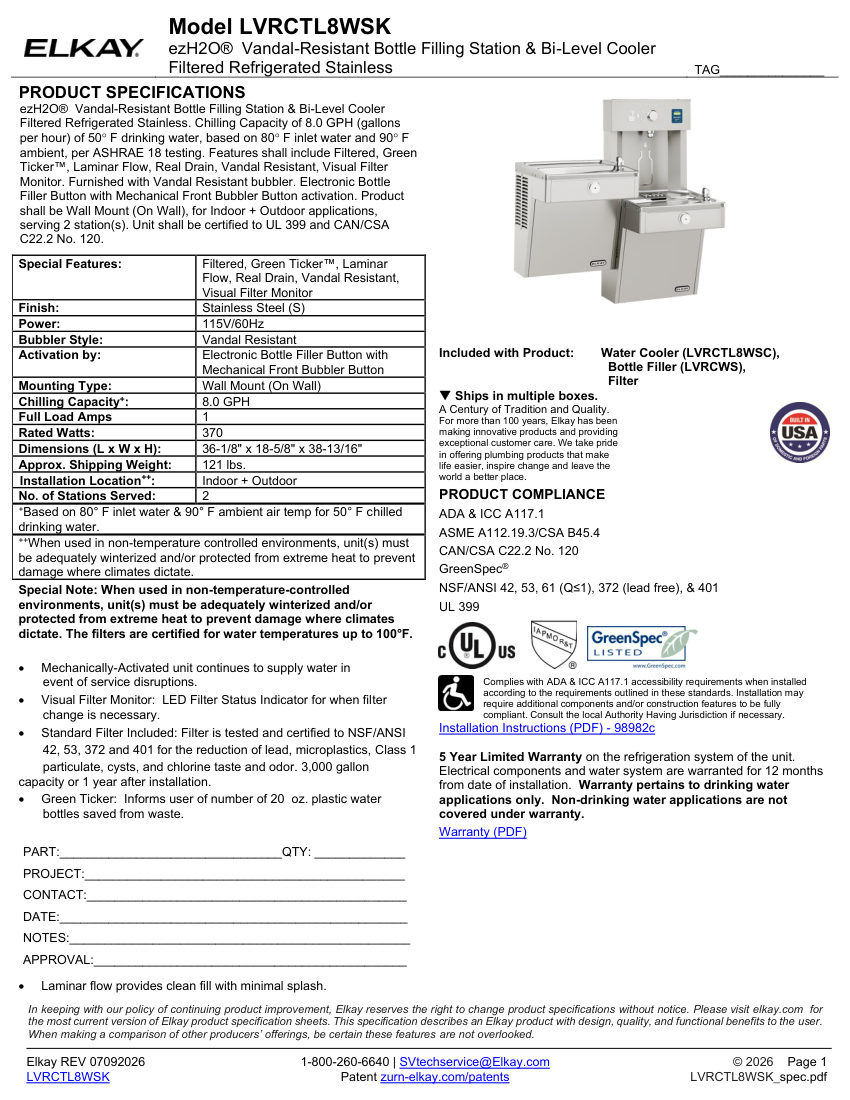

Elkay LVRCTL8WSK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LVRCTL8WSK
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLVRCTL8WSK
DescriptionElkay Vandal-Resistant Bottle Filling Station & Bi-Level Cooler (Water Cooler). Model LVRCTL8WSK. Chilling capacity of 8.0 GPH at 50°F; Serves 2 stations; Includes filtered water with visual filter monitor; Vandal-resistant bubbler with electronic bottle filler button. material: Stainless Steel
Flow Rate8.0 GPH
FinishStainless Steel
MountingWall Mount (On Wall)
Dimensions36-1/8" x 18-5/8" x 38-13/16"
ComplianceUL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 42, 53, 61, 372, 401, ADA & ICC A117.1.
