DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

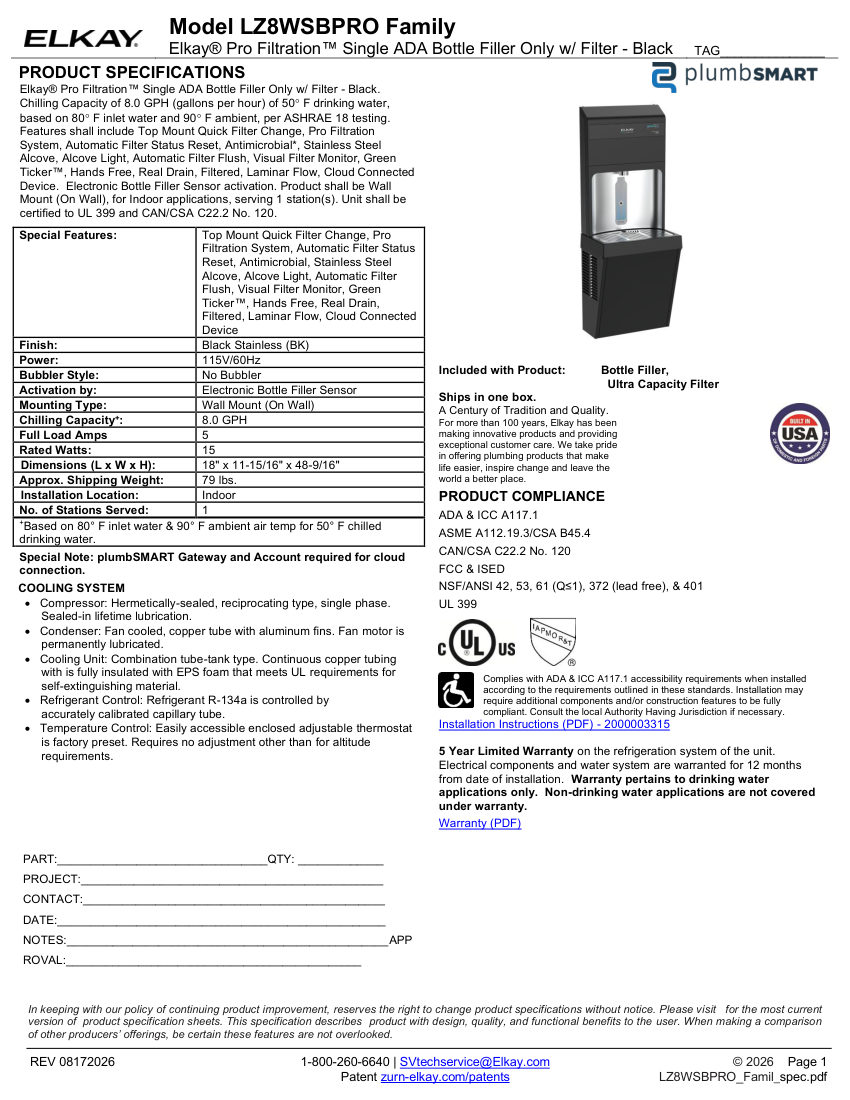

ElkayLZ8WSBPRO FAMILYLZ8WSBPRO-FAMILY

Name: Elkay LZ8WSBPRO FAMILY (LZ8WSBPRO-FAMILY)
Brand: Elkay
SKU: LZ8WSBPRO-FAMILY

Elkay ADA Bottle Filler (Elkay Pro Filtration). Model LZ8WSBPRO. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LZ8WSBPRO-FAMILY
Description	Elkay ADA Bottle Filler (Elkay Pro Filtration). Model LZ8WSBPRO. Chilling Capacity: 8.0 GPH of 50°F water
Activation	Electronic Bottle Filler Sensor (Hands Free)
Filtration	Pro Filtration System with Top Mount Quick Filter Change
Refrigerant	R-134a. material: Stainless Steel Alcove
Flow Rate	8.0 GPH
Finish	Black Stainless
Mounting	Wall Mount (On Wall)
Dimensions	18" x 11-15/16" x 48-9/16"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 42, 53, 61, 372, 401.
