DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayLZ8WSSPRO FAMILYLZ8WSSPRO-FAMILY

Elkay ADA Bottle Filler (Bottle Filler). Model LZ8WSSPRO. Chilling Capacity: 8.0 GPH of 50°F water

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLZ8WSSPRO-FAMILY.pdfData sheet

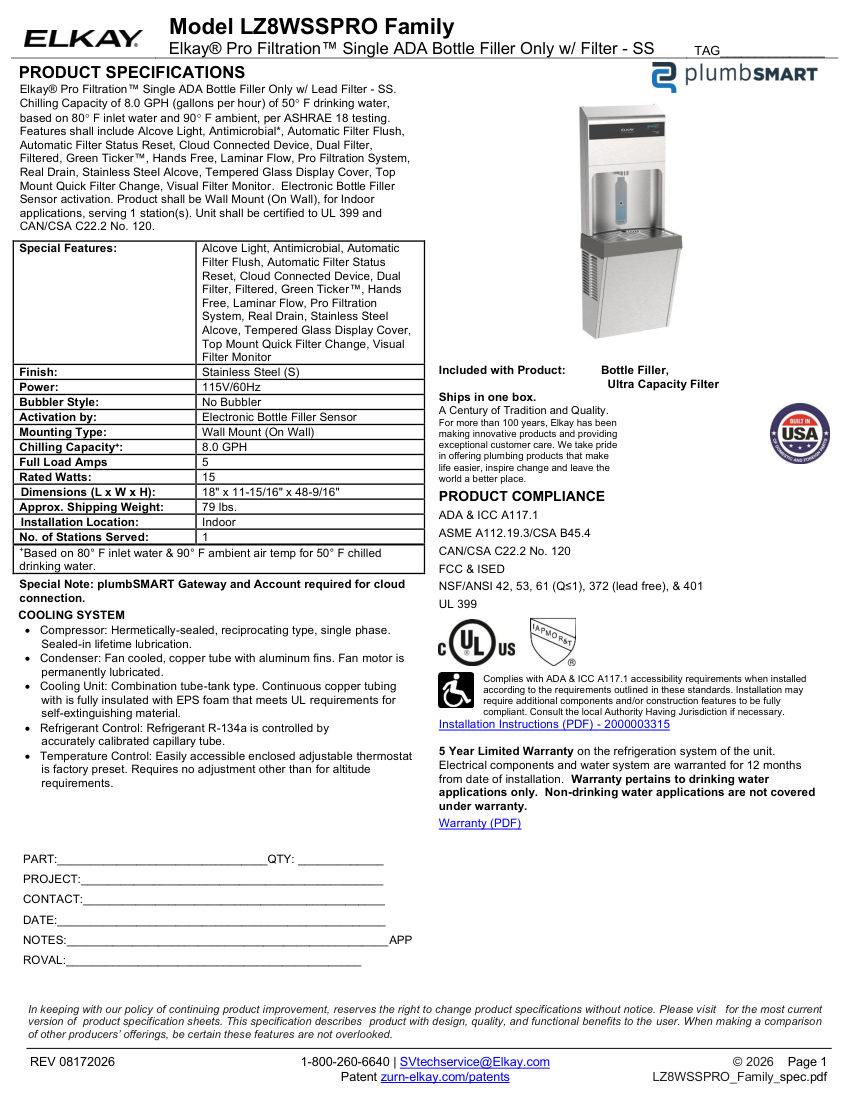

Elkay LZ8WSSPRO-FAMILY cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LZ8WSSPRO-FAMILY
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLZ8WSSPRO-FAMILY
DescriptionElkay ADA Bottle Filler (Bottle Filler). Model LZ8WSSPRO. Chilling Capacity: 8.0 GPH of 50°F water
ActivationElectronic Bottle Filler Sensor (Hands Free)
FiltrationDual Filter, Certified to NSF/ANSI 42, 53, 401
MountingWall Mount, Indoor, 1 Station. material: Stainless Steel
Flow Rate8.0 GPH
FinishStainless Steel
MountingWall Mount (On Wall)
Dimensions18" x 11-15/16" x 48-9/16"
ComplianceUL 399, CAN/CSA C22.2 No. 120, ADA, ICC A117.1, ASME A112.19.3, NSF/ANSI 42, 53, 61, 372, 401.
