DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayLZ8WSSSMC

Elkay Refrigerated Bottle Filling Station (Bottle Filling Station). Model LZ8WSSSMC. Chilling capacity of 8.0 GPH at 50°F; Electronic Bottle Filler Sensor activation; Includes filter certified to NSF/ANSI 42, 53, 372, and 401; Features laminar flow and real drain system. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLZ8WSSSMC.pdfData sheet

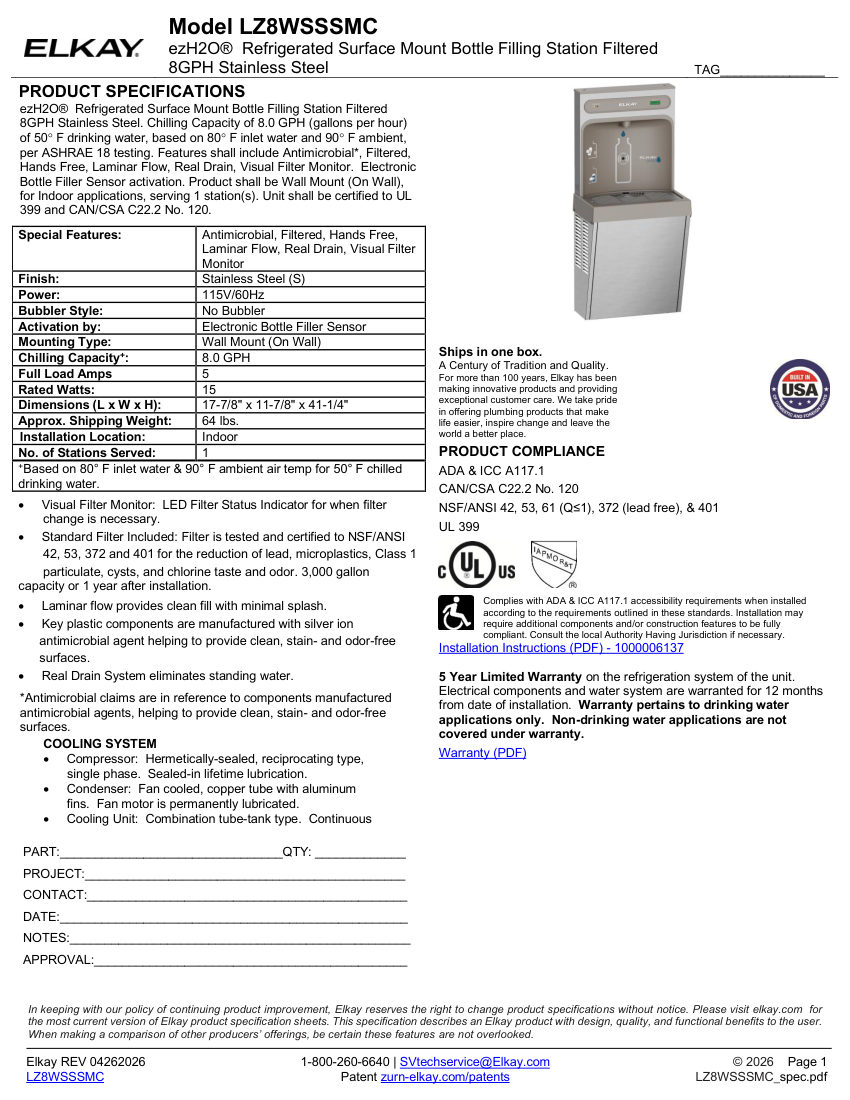

Elkay LZ8WSSSMC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LZ8WSSSMC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLZ8WSSSMC
DescriptionElkay Refrigerated Bottle Filling Station (Bottle Filling Station). Model LZ8WSSSMC. Chilling capacity of 8.0 GPH at 50°F; Electronic Bottle Filler Sensor activation; Includes filter certified to NSF/ANSI 42, 53, 372, and 401; Features laminar flow and real drain system. material: Stainless Steel
Flow Rate8.0 GPH
FinishStainless Steel
MountingWall Mount (On Wall)
Dimensions17-7/8" x 11-7/8" x 41-1/4"
ComplianceUL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 42, 53, 61, 372, 401, ADA & ICC A117.1.
