ElkayMechanical Bottle Filling Station Integral Soft Sides FountainLZLMSN-EDFPVM217DK

Elkay Mechanical Bottle Filling Station with Fountain (Drinking Fountain). Model LZLMSN-EDFPVM217DK. Mechanically activated bottle filler and front bubbler; Filtered ambient water, non-refrigerated; Vandal resistant bubbler and laminar flow; Serves 2 stations. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLZLMSN-EDFPVM217DK.pdfData sheet

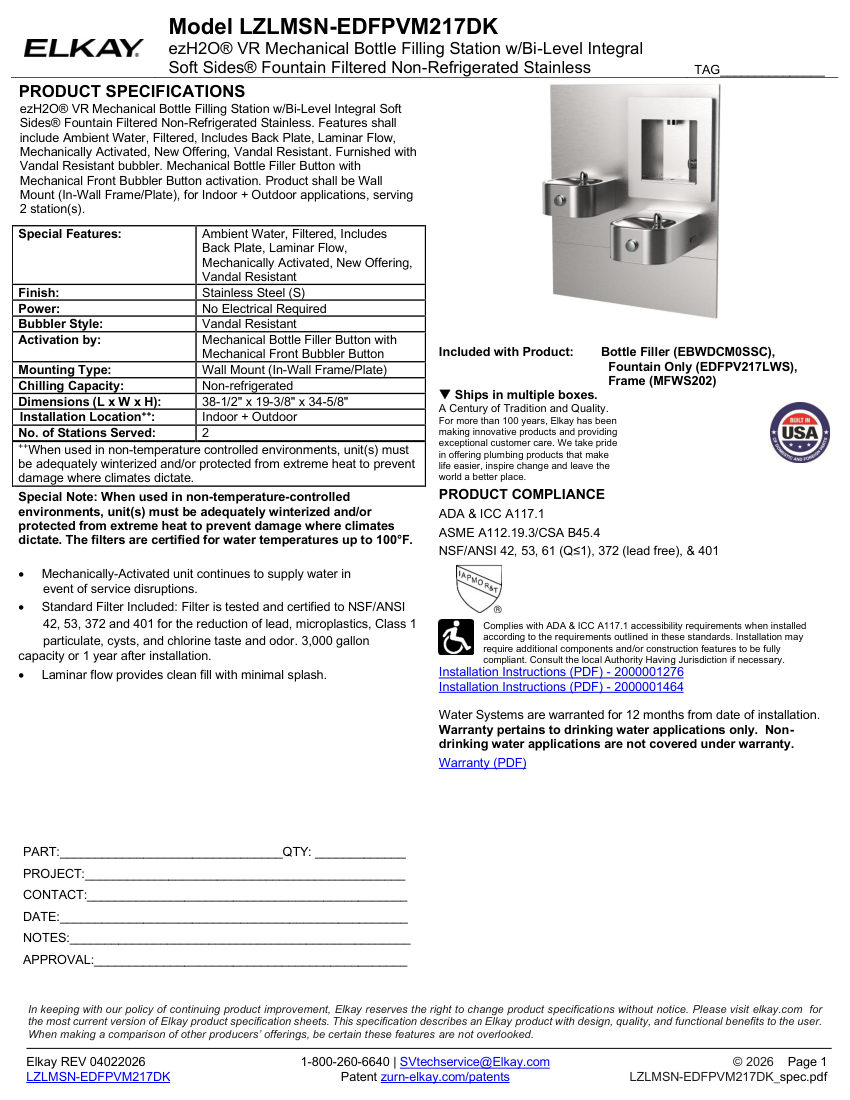

Elkay LZLMSN-EDFPVM217DK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LZLMSN-EDFPVM217DK
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLZLMSN-EDFPVM217DK
DescriptionElkay Mechanical Bottle Filling Station with Fountain (Drinking Fountain). Model LZLMSN-EDFPVM217DK. Mechanically activated bottle filler and front bubbler; Filtered ambient water, non-refrigerated; Vandal resistant bubbler and laminar flow; Serves 2 stations. material: Stainless Steel
FinishStainless Steel (S)
MountingWall Mount (In-Wall Frame/Plate)
Dimensions38-1/2" x 19-3/8" x 34-5/8"
ComplianceADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 42, 53, 61, 372, 401
VoltageNo Electrical Required.
