DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

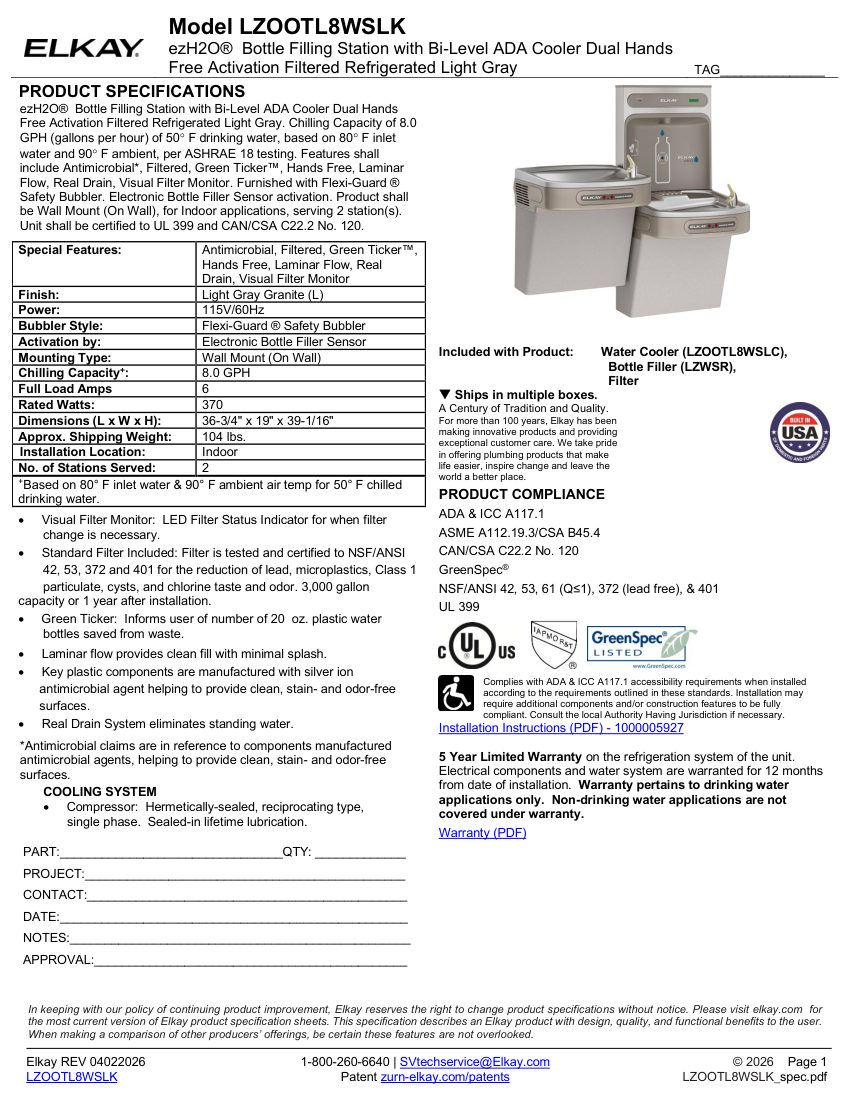

ElkayBottle Filling Station ADA Cooler Dual HandsLZOOTL8WSLK

Name: Elkay Bottle Filling Station ADA Cooler Dual Hands (LZOOTL8WSLK)
Brand: Elkay
SKU: LZOOTL8WSLK

Elkay Bottle Filling Station with ADA Cooler (Bottle Filling Station). Model LZOOTL8WSLK. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LZOOTL8WSLK
Description	Elkay Bottle Filling Station with ADA Cooler (Bottle Filling Station). Model LZOOTL8WSLK. Chilling Capacity: 8.0 GPH of 50°F water
Activation	Electronic Bottle Filler Sensor (Hands Free)
Filter	NSF/ANSI 42, 53, 372, 401 certified; 3,000 gallon capacity
Stations Served	2. flowRate: 8.0 GPH
Finish	Light Gray Granite
Mounting	Wall Mount (On Wall)
Dimensions	36-3/4" x 19" x 39-1/16"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 42, 53, 61, 372, 401
Voltage	115V/60Hz.
