DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayLZS8WSAP-PF

Elkay Enhanced Filtered Bottle Filling Station & Single ADA Cooler (Bottle Filling Station). Model LZS8WSAP-PF. Chilling Capacity: 8.0 GPH of 50°F water; Features PFOA/PFOS & Lead Reduction filter; Includes Flexi-Guard Safety Bubbler and Bottle Filler; Hands-free activation via Electronic Bottle Filler Sensor. flowRate: 8.0 GPH

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLZS8WSAP-PF.pdfData sheet

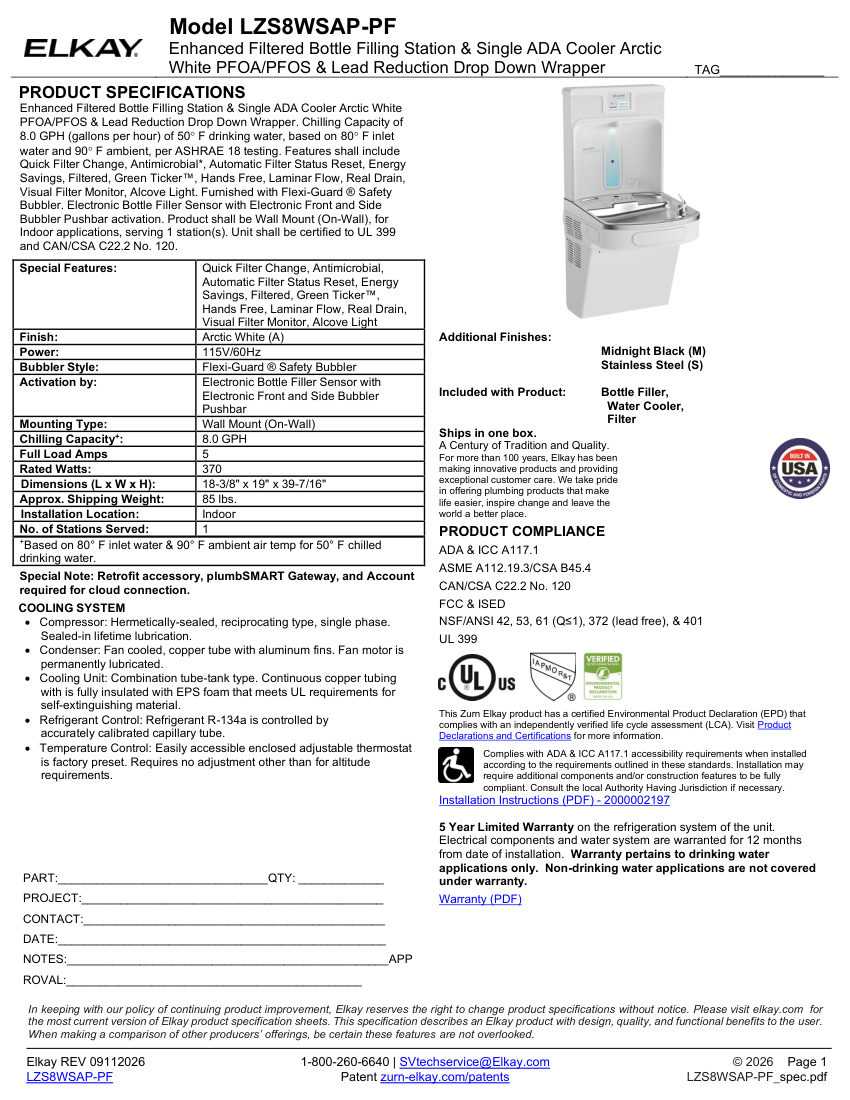

Elkay LZS8WSAP-PF cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
LZS8WSAP-PF
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLZS8WSAP-PF
DescriptionElkay Enhanced Filtered Bottle Filling Station & Single ADA Cooler (Bottle Filling Station). Model LZS8WSAP-PF. Chilling Capacity: 8.0 GPH of 50°F water; Features PFOA/PFOS & Lead Reduction filter; Includes Flexi-Guard Safety Bubbler and Bottle Filler; Hands-free activation via Electronic Bottle Filler Sensor. flowRate: 8.0 GPH
FinishArctic White
MountingWall Mount (On-Wall)
Dimensions18-3/8" x 19" x 39-7/16"
ComplianceUL 399, CAN/CSA C22.2 No. 120, NSF/ANSI 42, 53, 61, 372, 401, ADA & ICC A117.1
Voltage115V/60Hz.
