DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

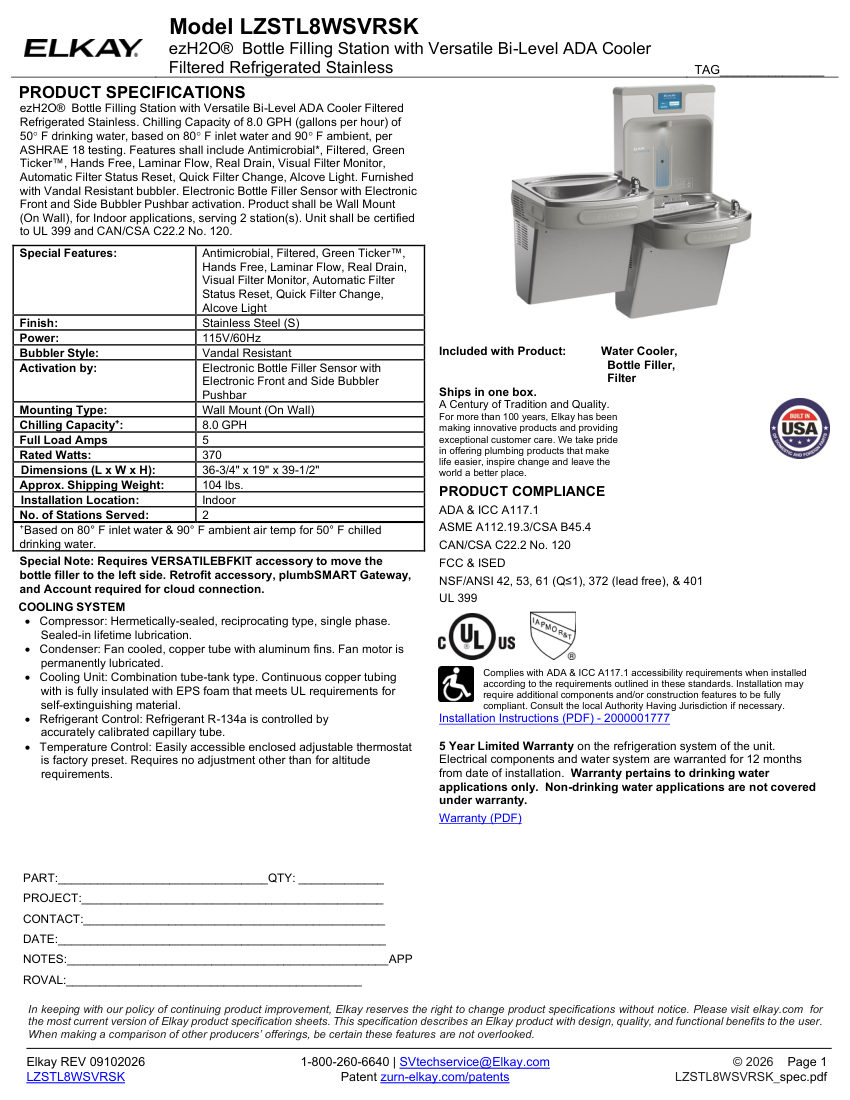

ElkayLaminar Flow Bottle Filling Station BiLZSTL8WSVRSK

Name: Elkay Laminar Flow Bottle Filling Station Bi (LZSTL8WSVRSK)
Brand: Elkay
SKU: LZSTL8WSVRSK

Elkay Bottle Filling Station with Cooler (Bottle Filling Station). Model LZSTL8WSVRSK. Chilling Capacity: 8.0 GPH of 50°F water

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LZSTL8WSVRSK
Description	Elkay Bottle Filling Station with Cooler (Bottle Filling Station). Model LZSTL8WSVRSK. Chilling Capacity: 8.0 GPH of 50°F water
Features	Antimicrobial, Filtered, Hands Free, Laminar Flow
Activation	Electronic Bottle Filler Sensor with Pushbar
Stations Served	2. material: Stainless Steel
Flow Rate	8.0 GPH
Finish	Stainless Steel
Mounting	Wall Mount (On Wall)
Dimensions	36-3/4" x 19" x 39-1/2"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 42, 53, 61, 372, 401.
