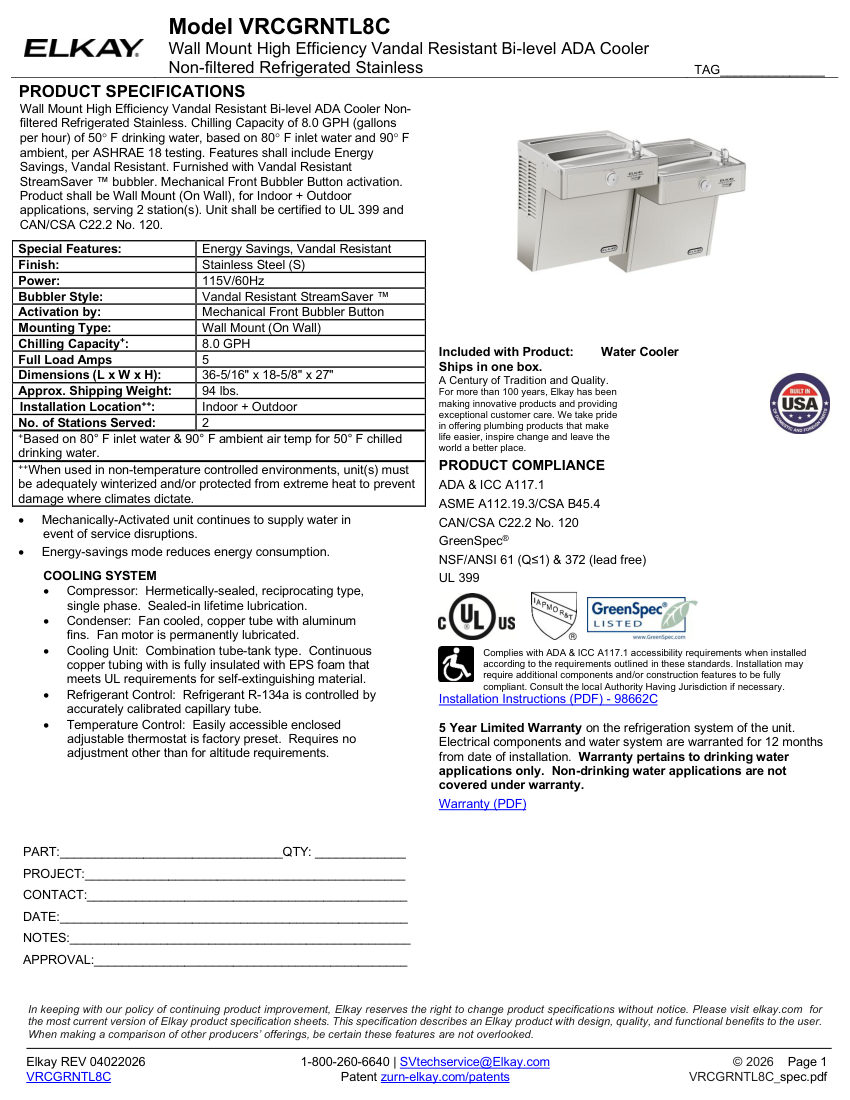

ElkayOn Wall 8 GPH High Efficiency Vandal Resistant BiVRCGRNTL8C

Name: Elkay On Wall 8 GPH High Efficiency Vandal Resistant Bi (VRCGRNTL8C)
Brand: Elkay
SKU: VRCGRNTL8C

Elkay Wall Mount High Efficiency Vandal Resistant Bi-level ADA Cooler (Water Cooler). Model VRCGRNTL8C. Chilling Capacity: 8.0 GPH

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	VRCGRNTL8C
Description	Elkay Wall Mount High Efficiency Vandal Resistant Bi-level ADA Cooler (Water Cooler). Model VRCGRNTL8C. Chilling Capacity: 8.0 GPH
Activation	Mechanical Front Bubbler Button
Bubbler Style	Vandal Resistant StreamSaver
Stations Served	2. material: Stainless Steel
Flow Rate	8.0 GPH
Finish	Stainless Steel
Mounting	Wall Mount (On Wall)
Dimensions	36-5/16" x 18-5/8" x 27"
Compliance	UL 399, CAN/CSA C22.2 No. 120, ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 61 & 372.
