DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayStainless Steel Wall Mount Vandal Resistant BiVRCTLDDSC

Elkay Wall Mount Vandal Resistant Bi-level ADA Cooler (Water Cooler). Model VRCTLDDSC. Vandal Resistant bubbler with mechanical front button activation; Non-refrigerated and non-filtered; Serves 2 stations; Suitable for Indoor and Outdoor applications. material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFVRCTLDDSC.pdfData sheet

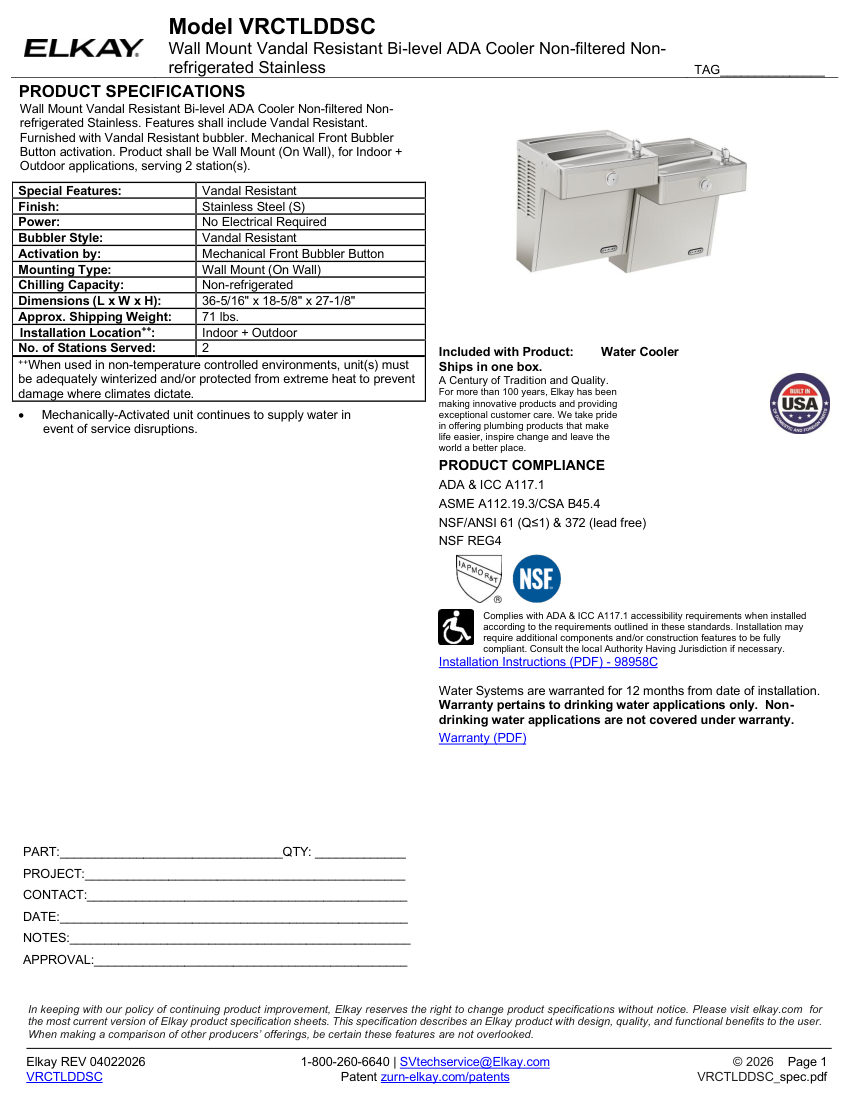

Elkay VRCTLDDSC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
VRCTLDDSC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberVRCTLDDSC
DescriptionElkay Wall Mount Vandal Resistant Bi-level ADA Cooler (Water Cooler). Model VRCTLDDSC. Vandal Resistant bubbler with mechanical front button activation; Non-refrigerated and non-filtered; Serves 2 stations; Suitable for Indoor and Outdoor applications. material: Stainless Steel
FinishStainless Steel (S)
MountingWall Mount (On Wall)
Dimensions36-5/16" x 18-5/8" x 27-1/8"
ComplianceADA & ICC A117.1, ASME A112.19.3/CSA B45.4, NSF/ANSI 61 (Q≤1) & 372 (lead free), NSF REG4
VoltageNo Electrical Required.
