DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay SS 19" x 23" x 4", Wall Hung Single Bowl Lavatory Sink KitWCL1923OSDSACMC

Elkay Wall Hung Single Bowl Lavatory Sink Kit (Sturdibilt). Model WCL1923OSDSACMC. 18 gauge 304 Stainless Steel construction; Single bowl with rear center drain placement; Includes LKB721C sensor faucet and LK724 mechanical mixing valve

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFWCL1923OSDSACMC.pdfData sheet

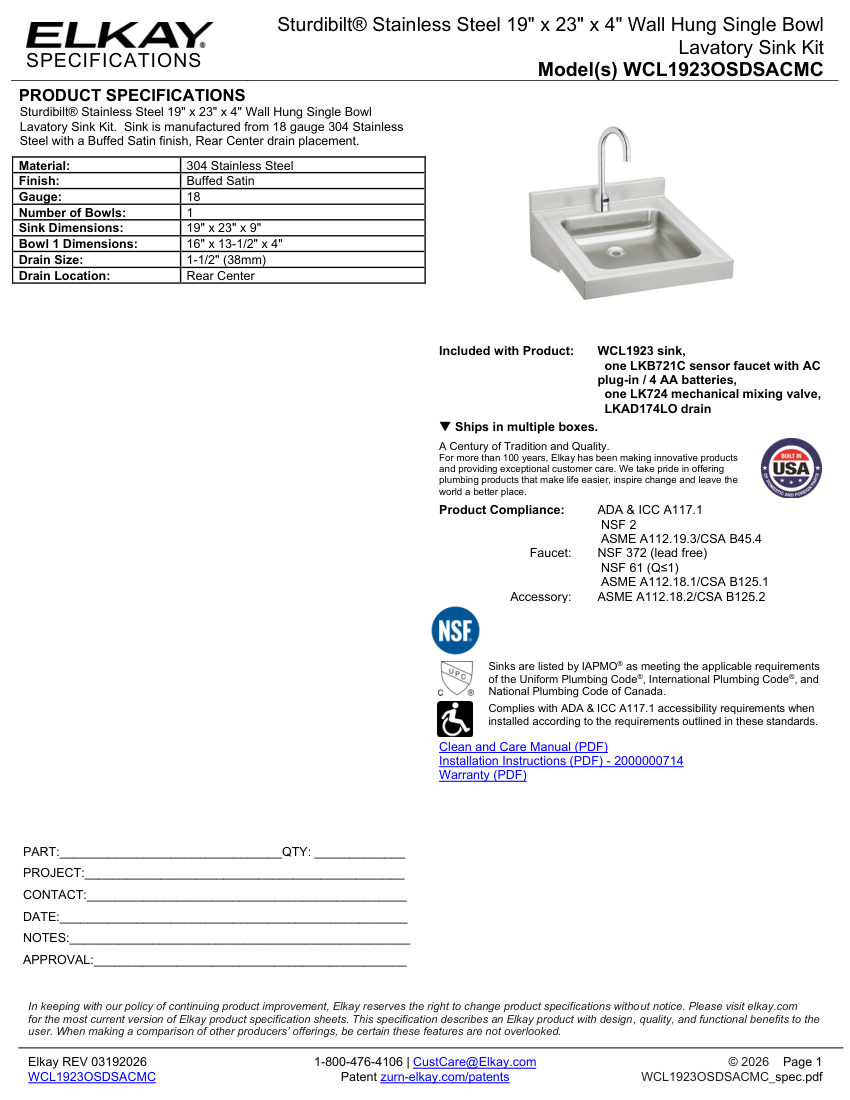

Elkay WCL1923OSDSACMC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
WCL1923OSDSACMC
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberWCL1923OSDSACMC
DescriptionElkay Wall Hung Single Bowl Lavatory Sink Kit (Sturdibilt). Model WCL1923OSDSACMC. 18 gauge 304 Stainless Steel construction; Single bowl with rear center drain placement; Includes LKB721C sensor faucet and LK724 mechanical mixing valve
Bowl dimensions16" x 13-1/2" x 4". material: 304 Stainless Steel
Connection size1-1/2" (38mm)
FinishBuffed Satin
MountingWall Hung
Dimensions19" x 23" x 9"
ComplianceADA, ICC A117.1, NSF 2, ASME A112.19.3/CSA B45.4, NSF 372, NSF 61, ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2.
