DIV 22 · PLUMBINGSINKS/DRINKING FOUNTAINSCUT SHEET INDEXED

ElkayElkay Weldbilt SS 51" x 27WNSF82484

Elkay Double Compartment Scullery Sink (Weldbilt). Model WNSF8254. 14" deep compartments; Welded 1/4" radius coved corner construction; Full length 8" high backsplash with 45° sloped top; Integral drainboard with 1-1/2" wide inward sloping top channel rims. material: 14 gauge, type 304, (18-8) stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFWNSF82484.pdfData sheet

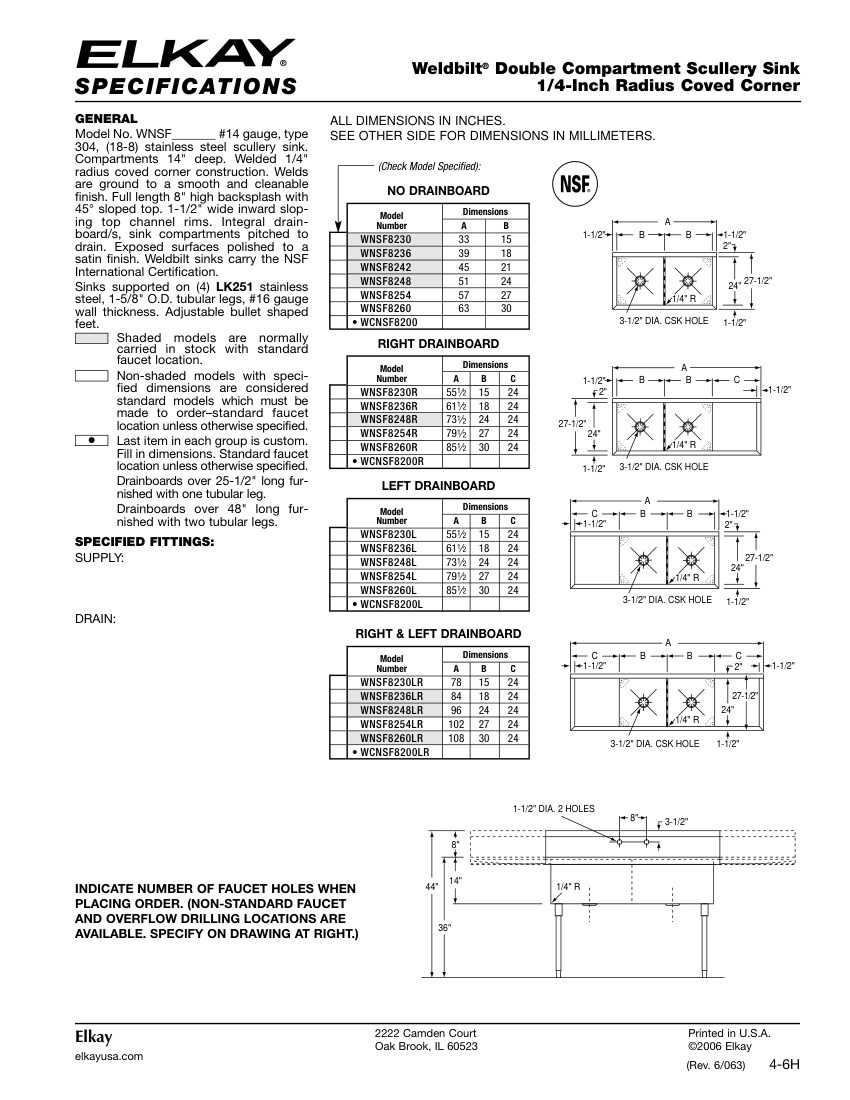

Elkay WNSF82484 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elkay
Catalog no.
WNSF82484
Product type
Sinks/Drinking Fountains
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberWNSF82484
DescriptionElkay Double Compartment Scullery Sink (Weldbilt). Model WNSF8254. 14" deep compartments; Welded 1/4" radius coved corner construction; Full length 8" high backsplash with 45° sloped top; Integral drainboard with 1-1/2" wide inward sloping top channel rims. material: 14 gauge, type 304, (18-8) stainless steel
FinishSatin finish
MountingFloor standing with (4) LK251 stainless steel tubular legs
Dimensions51" x 27" (Model WNSF8254)
ComplianceNSF International Certification.
