DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith9660 Drainage System9660 Drainage System Submittal - Jay R. Smith Mfg. Co.

Jay R. Smith Stainless Steel Trench Drain (Trench Drain). Model S9660. 6" wide modular system; 23 modular channel sections; Available neutral (flat) or with .6% pre-slope

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9660-Drainage-System-Submittal---Jay-R.-Smith-Mfg.-Co..pdfData sheet

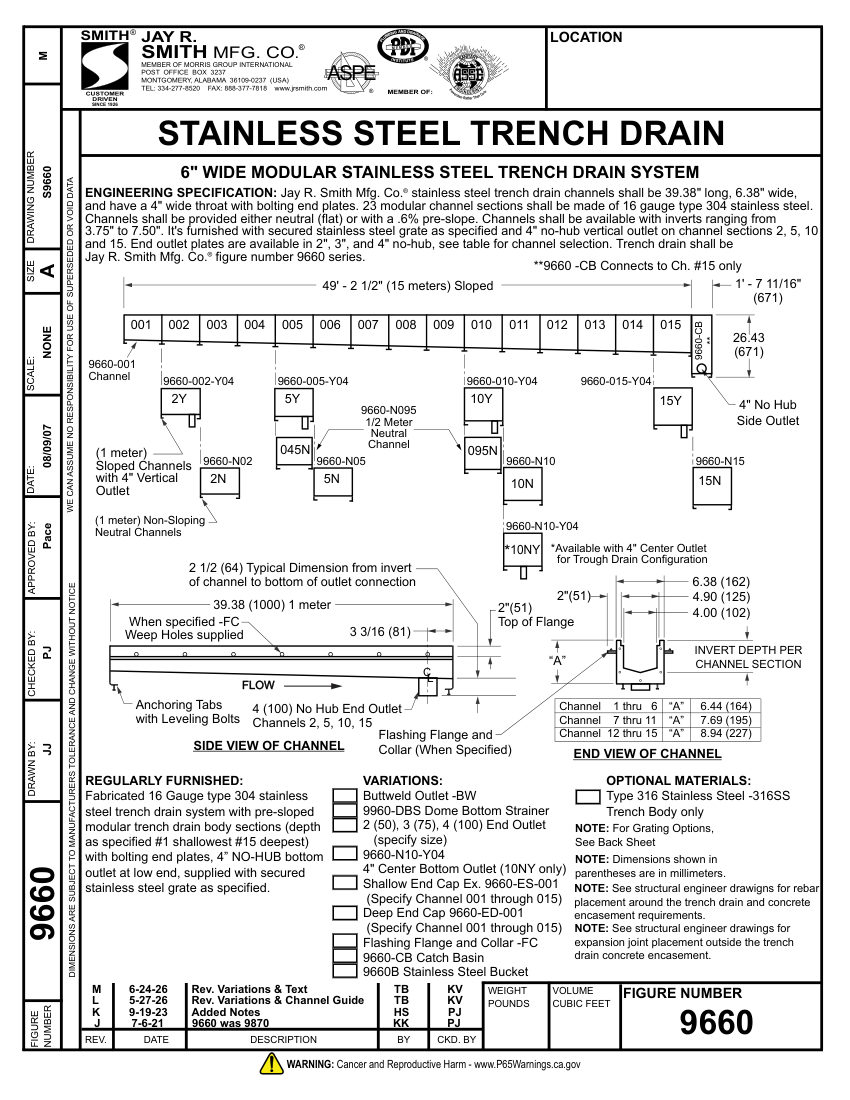

Jay R. Smith 9660 Drainage System Submittal - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9660 Drainage System Submittal - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9660 Drainage System Submittal - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Stainless Steel Trench Drain (Trench Drain). Model S9660. 6" wide modular system; 23 modular channel sections; Available neutral (flat) or with .6% pre-slope
ManufacturerJay R. Smith Mfg. Co.. material: 16 gauge type 304 stainless steel
End connectionbolting end plates
Dimensions39.38" long, 6.38" wide, 4" wide throat.
