Jay R. Smith9666 Trench Drain9666 Trench Drain Submittal - Jay R. Smith Mfg. Co.

Jay R. Smith Linear Drain (Trench Drain). Model 9666. Fabricated 14 Ga Type 304 Stainless Steel Body; Vandal Proof Stainless Steel Perforated Grate; Grate has .25" (6mm) Dia Perforations; 2" NO-Hub Bottom Outlet. material: Type 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9666-Trench-Drain-Submittal---Jay-R.-Smith-Mfg.-Co..pdfData sheet

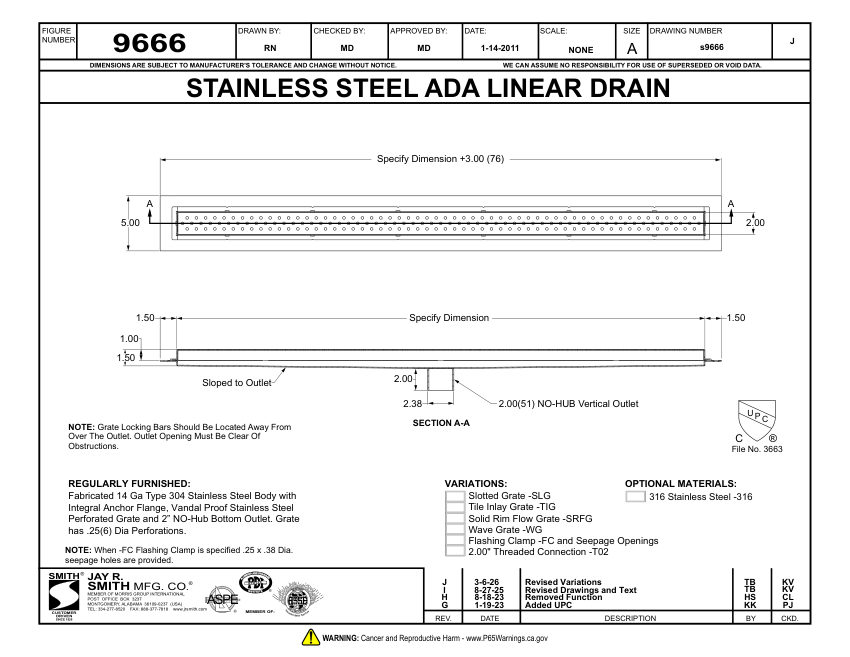

Jay R. Smith 9666 Trench Drain Submittal - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9666 Trench Drain Submittal - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9666 Trench Drain Submittal - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Linear Drain (Trench Drain). Model 9666. Fabricated 14 Ga Type 304 Stainless Steel Body; Vandal Proof Stainless Steel Perforated Grate; Grate has .25" (6mm) Dia Perforations; 2" NO-Hub Bottom Outlet. material: Type 304 Stainless Steel
Connection size2.00"
End connectionNO-HUB Vertical Outlet
FinishStainless Steel
MountingIntegral Anchor Flange
Dimensions5.00" x 2.00".
