DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith9812-MADA Grate9812-MADA Grate Submittal - Jay R. Smith Mfg. Co.

Jay R. Smith Floor Drain Grate (Drainage). Model 9812. Open Area: 42 sq. in.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9812-MADA-Grate-Submittal---Jay-R.-Smith-Mfg.-Co..pdfData sheet

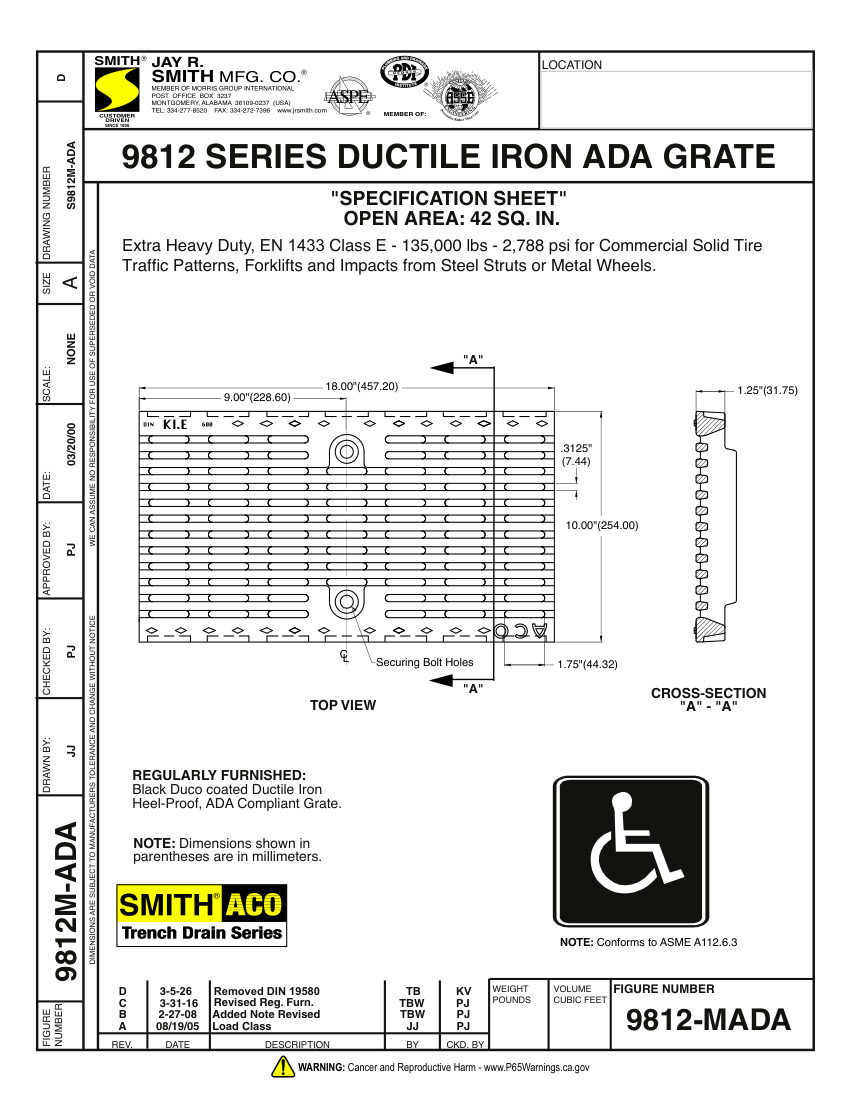

Jay R. Smith 9812-MADA Grate Submittal - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9812-MADA Grate Submittal - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9812-MADA Grate Submittal - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Floor Drain Grate (Drainage). Model 9812. Open Area: 42 sq. in.
Load Rating135,000 lbs (2,788 psi)
ClassEN 1433 Class E
ApplicationCommercial Solid Tire Traffic, Forklifts. material: Ductile Iron
Dimensions18.00" x 10.00" (457.20mm x 254.00mm)
ComplianceEN 1433 Class E, ADA.
