Jay R. Smith9835 Brickslot Drain Grate9835 Brickslot Drain Grate Submittal - Jay R. Smith Mf

Jay R. Smith Brickslot Drain Grate (Drainage). Model 9835. Standard Brickslot slot opening: 0.47" (12 mm); Heel-Proof Brickslot slot opening: 0.31" (8 mm)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9835-Brickslot-Drain-Grate-Submittal---Jay-R.-Smith-Mf.pdfData sheet

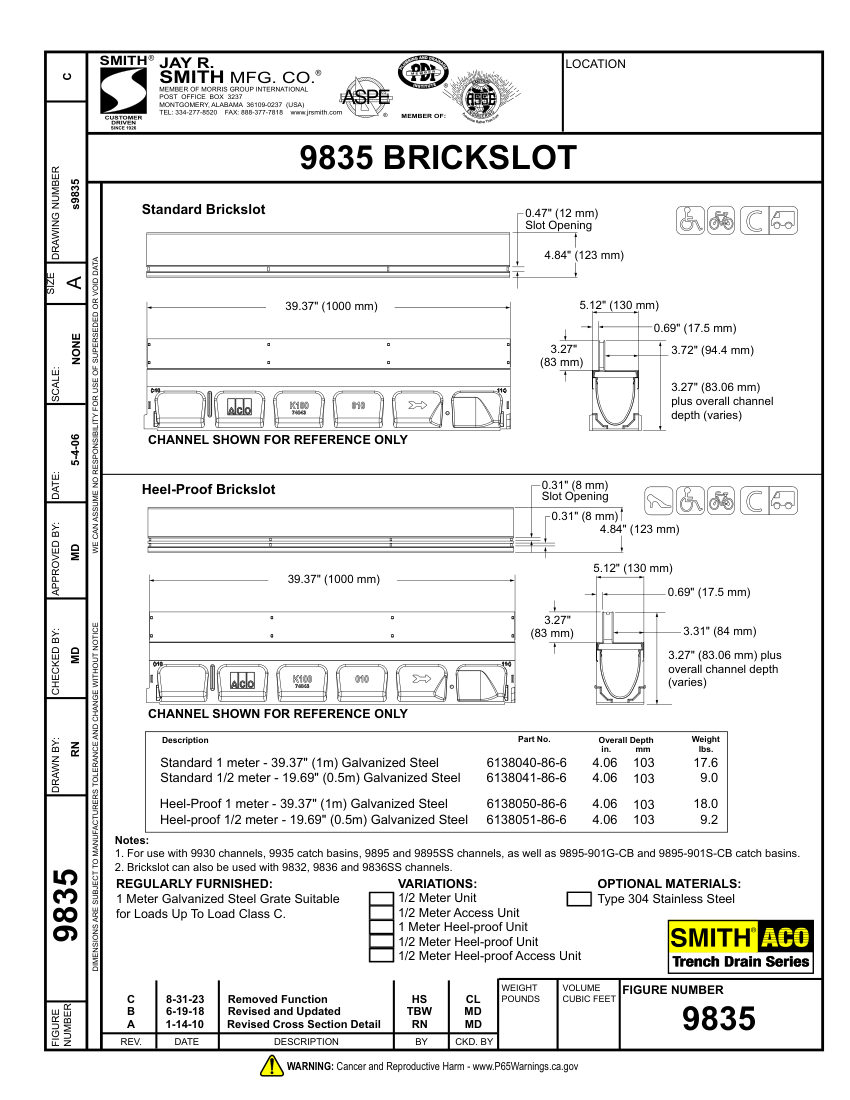

Jay R. Smith 9835 Brickslot Drain Grate Submittal - Jay R. Smith Mf cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9835 Brickslot Drain Grate Submittal - Jay R. Smith Mf
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9835 Brickslot Drain Grate Submittal - Jay R. Smith Mf
DescriptionJay R. Smith Brickslot Drain Grate (Drainage). Model 9835. Standard Brickslot slot opening: 0.47" (12 mm); Heel-Proof Brickslot slot opening: 0.31" (8 mm)
Overall length39.37" (1000 mm)
Overall width5.12" (130 mm). dimensions: 39.37" (1000 mm) x 5.12" (130 mm).
