Jay R. Smith9846 Sump Boxes9846 Sump Boxes Submittal - Jay R. Smith Mfg. Co.

Jay R. Smith Sump Box. Model 9846. Capacity: 43.3 gal (164 ltr)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9846-Sump-Boxes-Submittal---Jay-R.-Smith-Mfg.-Co..pdfData sheet

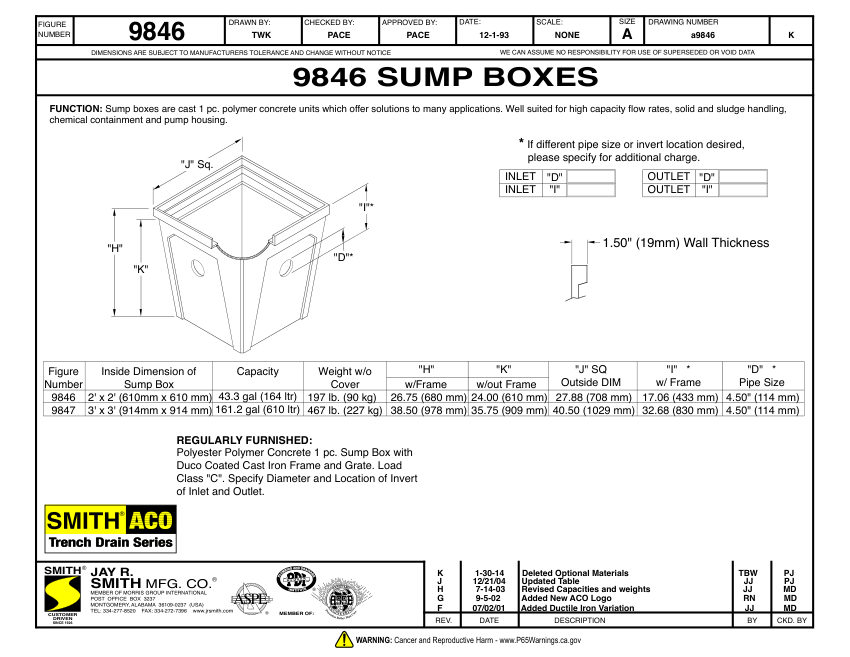

Jay R. Smith 9846 Sump Boxes Submittal - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9846 Sump Boxes Submittal - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9846 Sump Boxes Submittal - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Sump Box. Model 9846. Capacity: 43.3 gal (164 ltr)
Weight w/o Cover197 lb. (90 kg)
Wall Thickness1.50" (19mm); Height (H): 26.75 (680 mm). material: Polyester Polymer Concrete
Connection size4.50" (114 mm)
FinishDuco Coated Cast Iron Frame and Grate
Dimensions2' x 2' (610mm x 610 mm) inside
ComplianceLoad Class "C".
