Jay R. Smith Perforated Heavy Duty Grate (Grate). Model 9870-411-GPHD. Load Rating: 56,000 lbs (1,162 psi)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9870-411-GPHD-Grate-Submittal---Jay-R.-Smith-Mfg.-Co..pdfData sheet

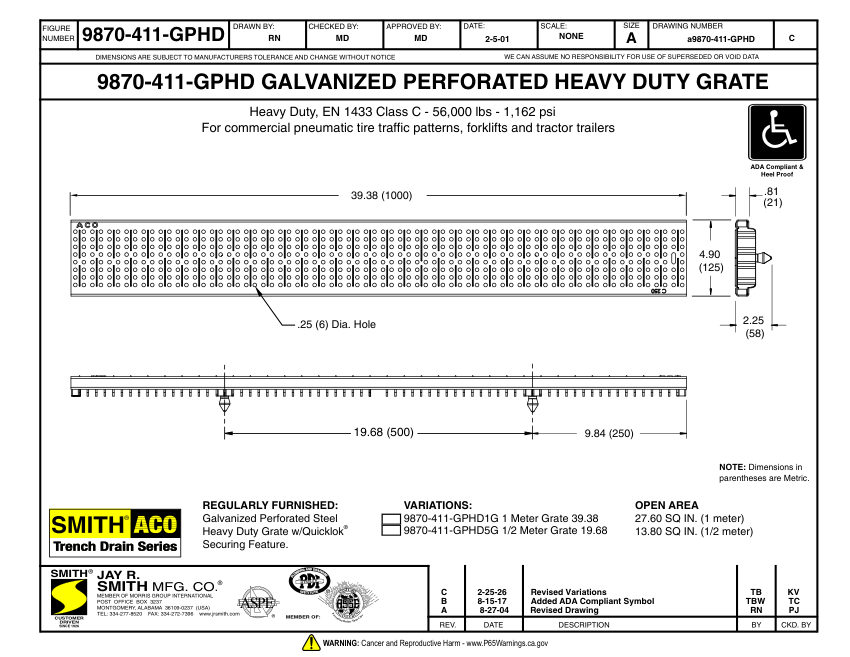

Jay R. Smith 9870-411-GPHD Grate Submittal - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9870-411-GPHD Grate Submittal - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9870-411-GPHD Grate Submittal - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Perforated Heavy Duty Grate (Grate). Model 9870-411-GPHD. Load Rating: 56,000 lbs (1,162 psi)
Open Area27.60 sq in (1 meter variation)
Hole Diameter0.25 in (6 mm); Heel Proof Design. material: Galvanized Perforated Steel
FinishGalvanized
MountingQuicklok Securing Feature
Dimensions39.38 x 19.68 in (1000 x 500 mm)
ComplianceEN 1433 Class C, ADA Compliant.
