Jay R. Smith9870-430-SSM Grate9870-430-SSM Grate Submittal - Jay R. Smith Mfg. Co.

Jay R. Smith Stainless Steel Mesh Grate (Drainage Grate). Model 9870-430-SSM. Load Rating: 56,000 lbs (1,162 psi)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9870-430-SSM-Grate-Submittal---Jay-R.-Smith-Mfg.-Co..pdfData sheet

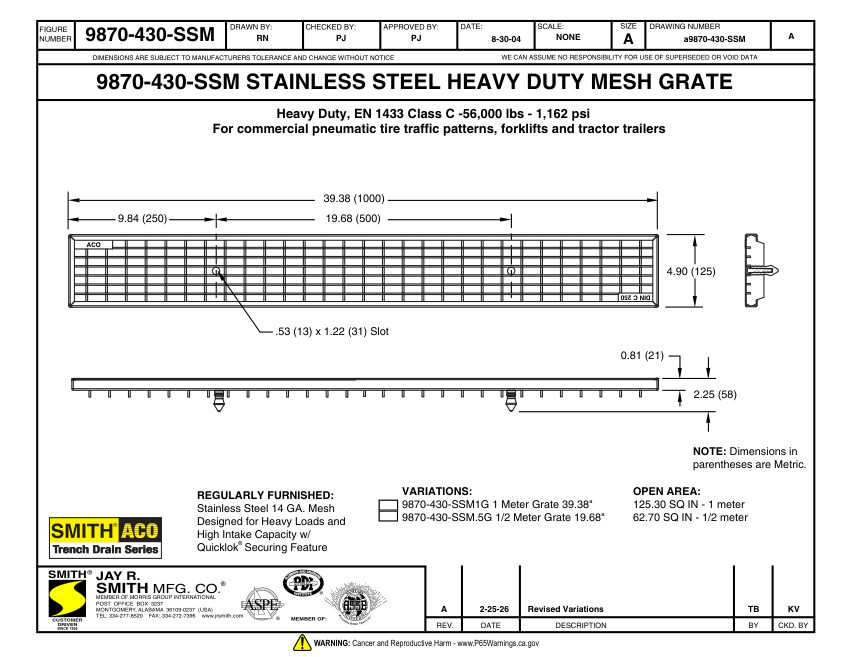

Jay R. Smith 9870-430-SSM Grate Submittal - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9870-430-SSM Grate Submittal - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9870-430-SSM Grate Submittal - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Stainless Steel Mesh Grate (Drainage Grate). Model 9870-430-SSM. Load Rating: 56,000 lbs (1,162 psi)
Open Area125.30 SQ IN
Slot Size0.53" x 1.22" (13mm x 31mm)
ApplicationCommercial pneumatic tire traffic, forklifts, tractor trailers. material: Stainless Steel 14 GA.
MountingQuicklok Securing Feature
Dimensions39.38" x 19.68" (1000mm x 500mm)
ComplianceEN 1433 Class C.
