DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith9870-435-GHDE Grate9870-435-GHDE Grate Submittal - Jay R. Smith Mfg. Co.

Jay R. Smith Floor Drain Grate (Drainage). Model 9870-435-GHDE. Extra Heavy Duty rating; Load capacity 135,000 lbs (2,788 psi); Open area 42.60 sq in; Suitable for commercial solid tire traffic and forklifts. material: Galvanized Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9870-435-GHDE-Grate-Submittal---Jay-R.-Smith-Mfg.-Co..pdfData sheet

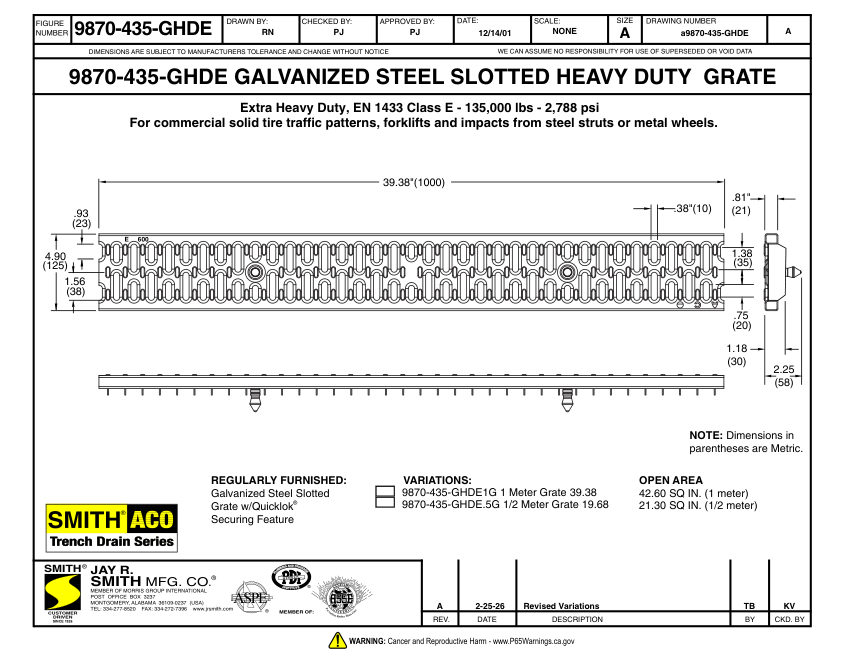

Jay R. Smith 9870-435-GHDE Grate Submittal - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9870-435-GHDE Grate Submittal - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9870-435-GHDE Grate Submittal - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Floor Drain Grate (Drainage). Model 9870-435-GHDE. Extra Heavy Duty rating; Load capacity 135,000 lbs (2,788 psi); Open area 42.60 sq in; Suitable for commercial solid tire traffic and forklifts. material: Galvanized Steel
FinishGalvanized
MountingQuicklok Securing Feature
Dimensions39.38" x 23.62" (1000mm x 600mm)
ComplianceEN 1433 Class E.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click

From fixture schedule to submittal in minutes.

How the Builder works →
  1. 01

    Describe the job

    Paste a fixture schedule, upload a spec section, or just list catalog numbers and quantities.

  2. 02

    The agent matches & assembles

    Products are matched from the indexed library and current cut sheets are pulled into a formatted package with cover and TOC.

  3. 03

    Share for review

    Send one link for sign-off, then roll the approved package into a quote or PO without retyping a part number.

More from Jay R. Smith

All 1062 cut sheets →
Browse every manufacturer in the cut sheet library →

Put the 9870-435-GHDE Grate Submittal - Jay R. Smith Mfg. Co. in a submittal package.

Describe the job and the AI agent builds the whole package — cut sheets pulled, schedule matched, cover and TOC included.

Get started freeNo card required
