DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith9870-487-MADAC Grate9870-487-MADAC Grate Submittal - Jay R. Smith Mfg. Co.

Jay R. Smith Heel-proof grate (Drainage). Model 9870-487-MADAC. Heel-proof design for wheelchair access; Suitable for parking lots and garages; Heavy duty traffic application

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9870-487-MADAC-Grate-Submittal---Jay-R.-Smith-Mfg.-Co..pdfData sheet

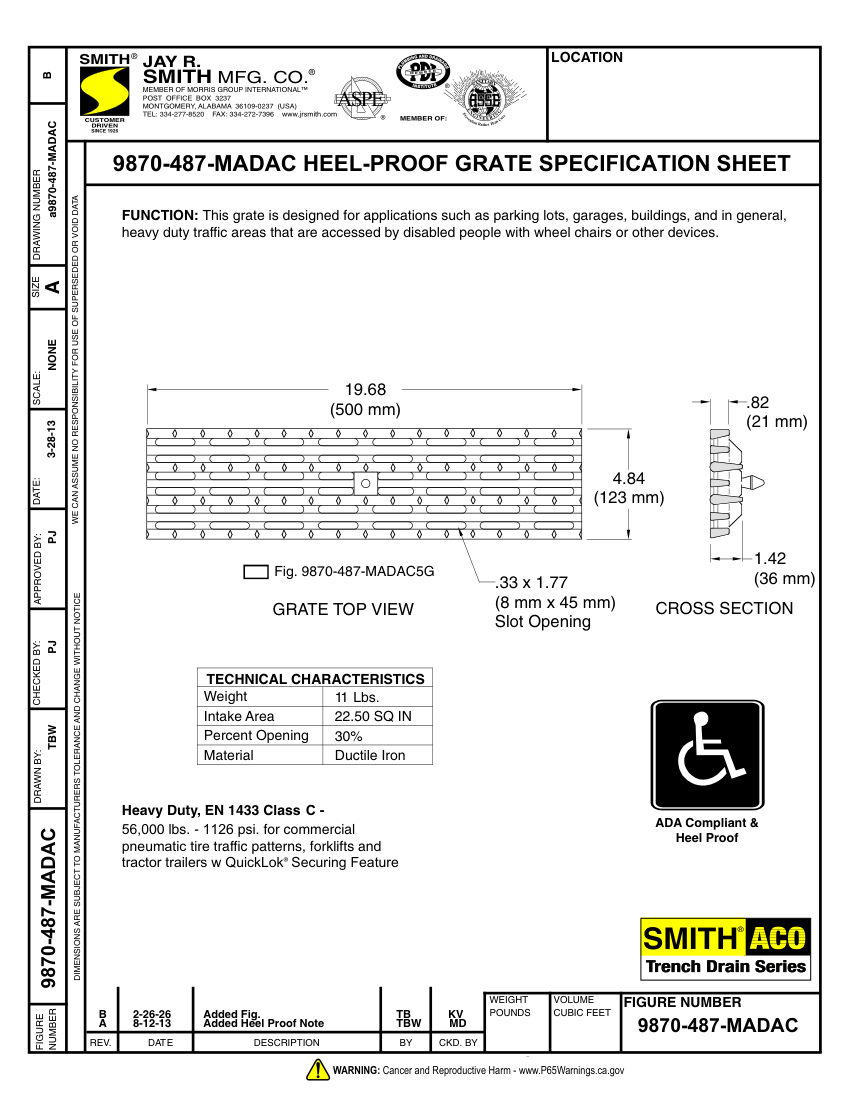

Jay R. Smith 9870-487-MADAC Grate Submittal - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9870-487-MADAC Grate Submittal - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9870-487-MADAC Grate Submittal - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Heel-proof grate (Drainage). Model 9870-487-MADAC. Heel-proof design for wheelchair access; Suitable for parking lots and garages; Heavy duty traffic application
Width19.68 in (500 mm). dimensions: 19.68 in (500 mm) x 4.84 in (123 mm)
ComplianceADA.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
