Jay R. Smith Floor Drain Grate (Drainage). Model 9870-494-PADA. Light Duty Rating: 3,500 lbs (70 psi)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9870-494-PADA-Grate-Submittal---Jay-R.-Smith-Mfg.-Co..pdfData sheet

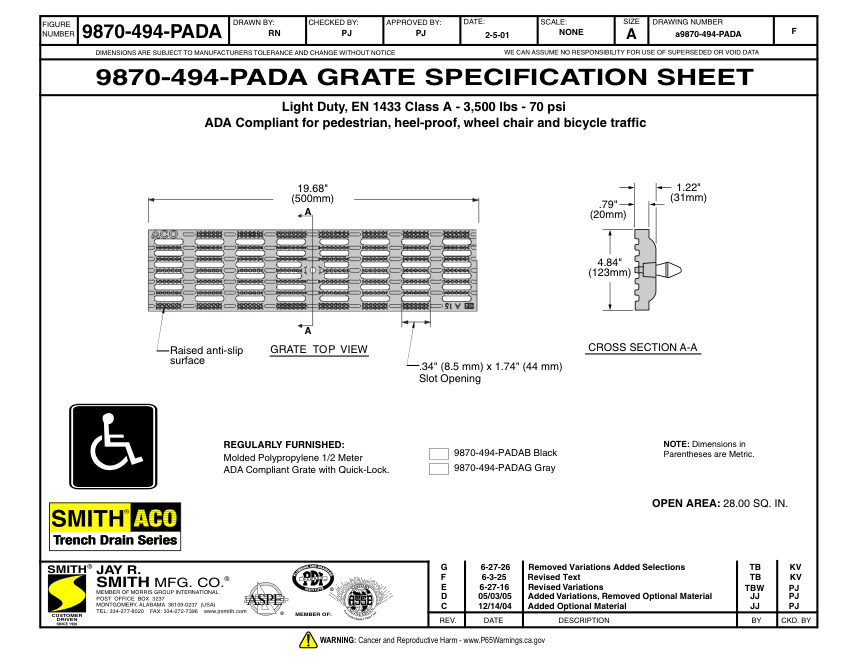

Jay R. Smith 9870-494-PADA Grate Submittal - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
9870-494-PADA Grate Submittal - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9870-494-PADA Grate Submittal - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Floor Drain Grate (Drainage). Model 9870-494-PADA. Light Duty Rating: 3,500 lbs (70 psi)
Slot Opening0.34" x 1.74" (8.5mm x 44mm)
Open Area28.00 sq. in.; Raised anti-slip surface. material: Molded Polypropylene
FinishBlack or Gray
MountingQuick-Lock
Dimensions19.68" x 1.22" (500mm x 31mm)
ComplianceEN 1433 Class A, ADA Compliant.
