Jay R. SmithCanadian Submittal 1010-E-C2-W Roof Drain - Jay R. Smi

Jay R. Smith Large General Purpose Roof Drain (Roof Drain). Model 1010-E-C2-W. Free Area: 102.5 Sq. In. (661) Sq. Cm.; Includes Combined Flashing and Gravel Stop; Features 2 Rows of 1/4" Seepage Holes; Extension Height is Specifiable. material: Polyethylene Dome

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCanadian-Submittal-1010-E-C2-W-Roof-Drain---Jay-R.-Smi.pdfData sheet

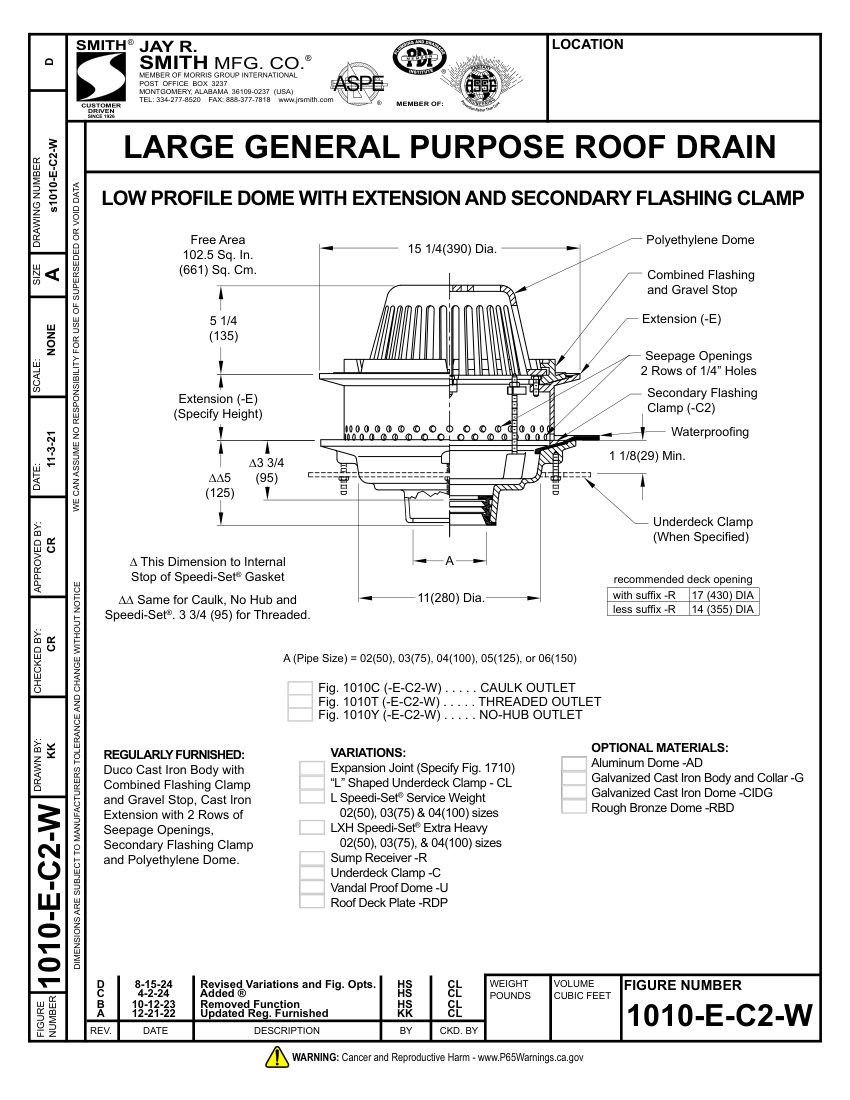

Jay R. Smith Canadian Submittal 1010-E-C2-W Roof Drain - Jay R. Smi cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
Canadian Submittal 1010-E-C2-W Roof Drain - Jay R. Smi
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCanadian Submittal 1010-E-C2-W Roof Drain - Jay R. Smi
DescriptionJay R. Smith Large General Purpose Roof Drain (Roof Drain). Model 1010-E-C2-W. Free Area: 102.5 Sq. In. (661) Sq. Cm.; Includes Combined Flashing and Gravel Stop; Features 2 Rows of 1/4" Seepage Holes; Extension Height is Specifiable. material: Polyethylene Dome
MountingLow Profile Dome with Extension and Secondary Flashing Clamp
Dimensions15 1/4 (390) Dia.
