DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith0644 Support - Jay R. Smith Mfg. Co.

Jay R. Smith Floor Mounted Fixture Support (Fixture Support). Model 0644. Floor mounted type with top supporting plate and bottom bearing plate; Designed for blow-out and washout urinals; Includes concealed wall hanger; Minimum dimension 2" (50mm). mounting: Floor Mounted

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF0644-Support---Jay-R.-Smith-Mfg.-Co..pdfData sheet

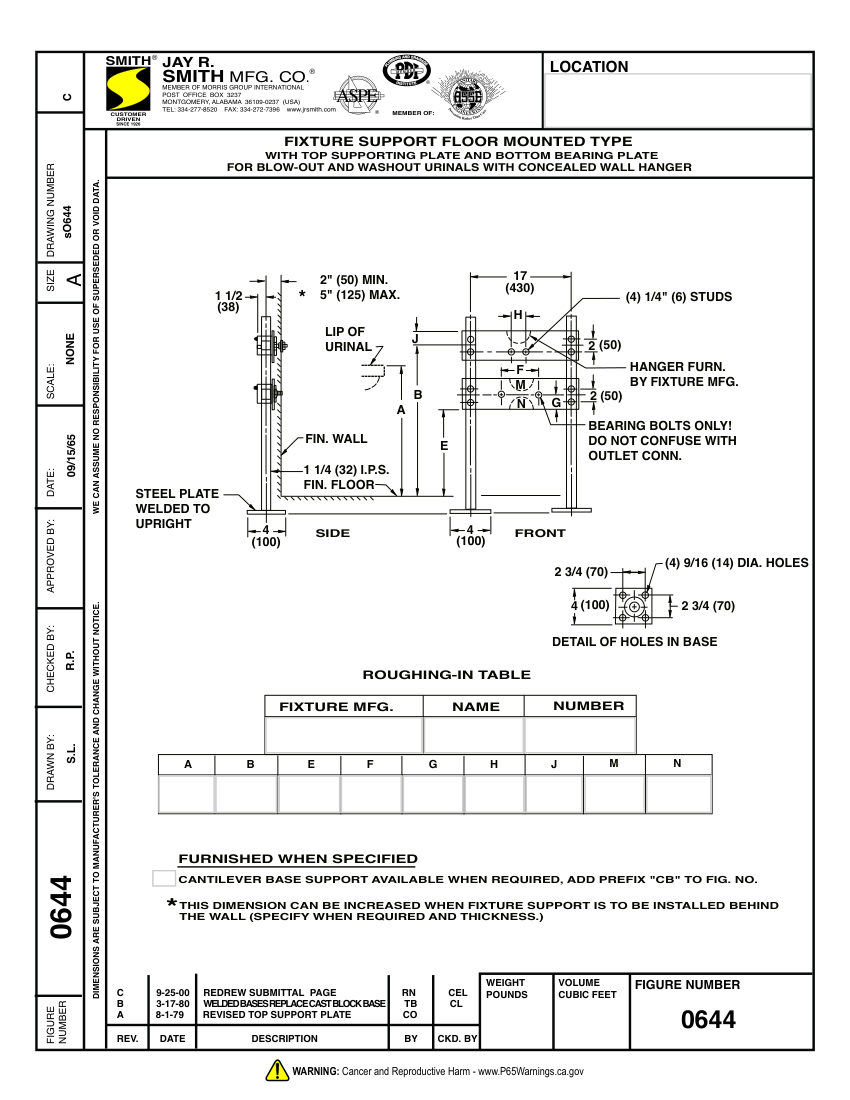

Jay R. Smith 0644 Support - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
0644 Support - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number0644 Support - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Floor Mounted Fixture Support (Fixture Support). Model 0644. Floor mounted type with top supporting plate and bottom bearing plate; Designed for blow-out and washout urinals; Includes concealed wall hanger; Minimum dimension 2" (50mm). mounting: Floor Mounted
Dimensions2" (50) MIN.
