DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Jay R. Smith0834-M32EZSTL8-4 Support

Jay R. Smith Floor Mounted Fixture Support (Fixture Support). Model 0834-M32EZSTL8-4. Designed for two wall mounted electrical water coolers; Includes support plates and fixture mounting studs; Features (10) 1/4" x 6" long studs; Hanger furnished by fixture manufacturer. mounting: Floor Mounted

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF0834-M32EZSTL8-4-Support.pdfData sheet

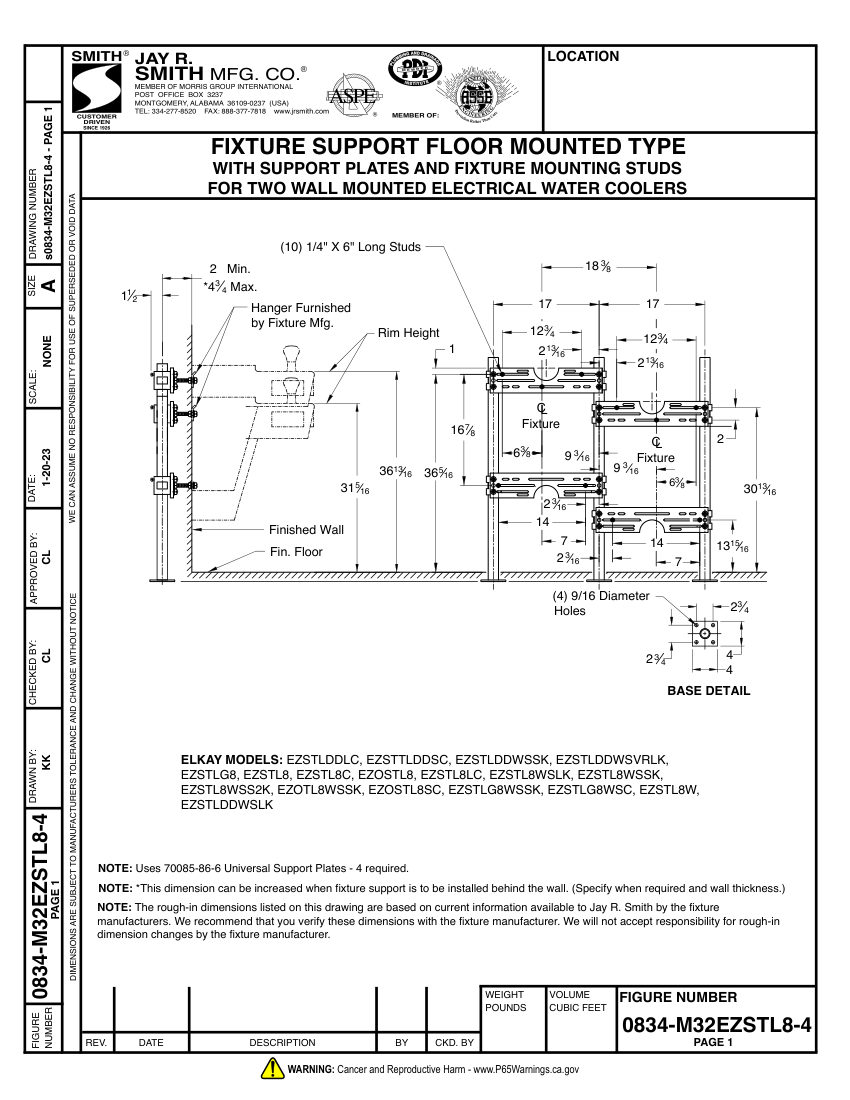

Jay R. Smith 0834-M32EZSTL8-4 Support cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
0834-M32EZSTL8-4 Support
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number0834-M32EZSTL8-4 Support
DescriptionJay R. Smith Floor Mounted Fixture Support (Fixture Support). Model 0834-M32EZSTL8-4. Designed for two wall mounted electrical water coolers; Includes support plates and fixture mounting studs; Features (10) 1/4" x 6" long studs; Hanger furnished by fixture manufacturer. mounting: Floor Mounted
Dimensions18 3/8" x 11 1/2" x 12 3/4" (Rim Height).
