Jay R. Smith0834-M32EZSTL8 Support - Jay R. Smith Mfg. C

Jay R. Smith Floor Mounted Fixture Support (Fixture Support). Model 0834-M32EZSTL8. Designed for two wall mounted electrical water coolers; Includes support plates and fixture mounting studs; Features (8) 1/4" x 6" long studs; Rim height is 17". mounting: Floor Mounted

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF0834-M32EZSTL8-Support---Jay-R.-Smith-Mfg.-C.pdfData sheet

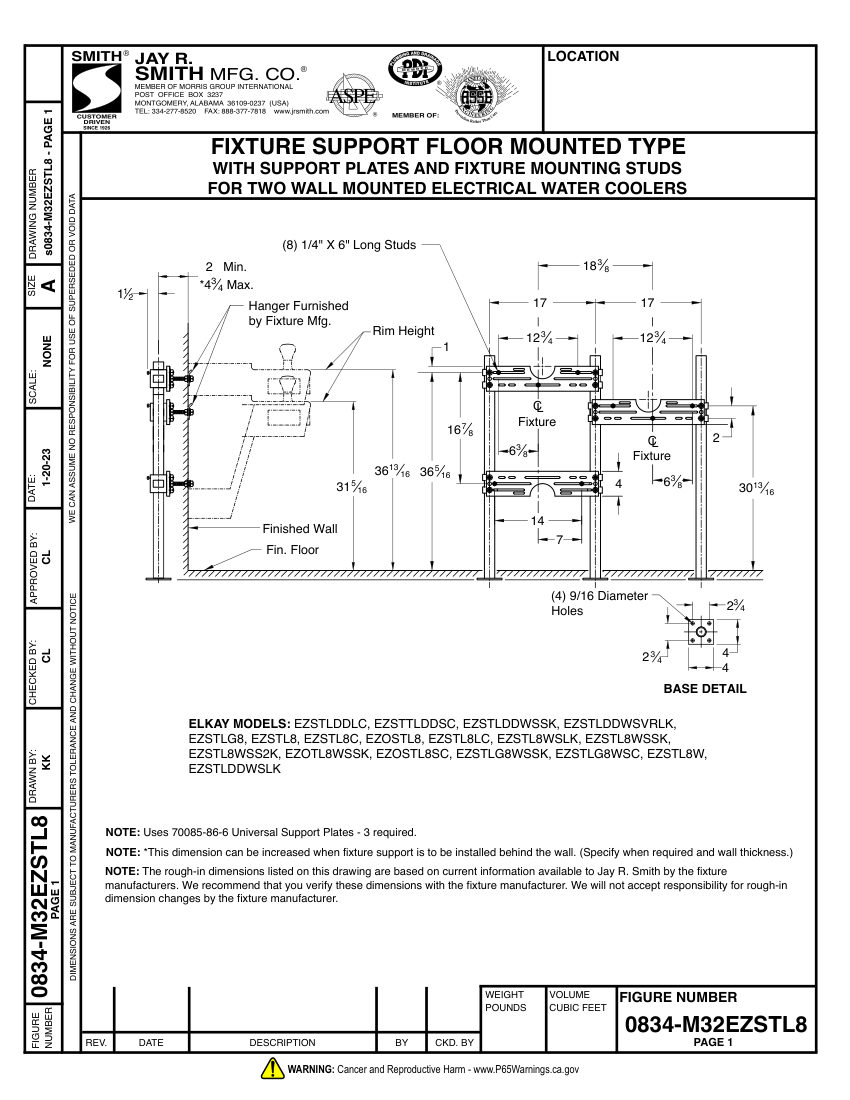

Jay R. Smith 0834-M32EZSTL8 Support - Jay R. Smith Mfg. C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
0834-M32EZSTL8 Support - Jay R. Smith Mfg. C
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number0834-M32EZSTL8 Support - Jay R. Smith Mfg. C
DescriptionJay R. Smith Floor Mounted Fixture Support (Fixture Support). Model 0834-M32EZSTL8. Designed for two wall mounted electrical water coolers; Includes support plates and fixture mounting studs; Features (8) 1/4" x 6" long studs; Rim height is 17". mounting: Floor Mounted
Dimensions18 3/8" x 11 1/2" x 17" (approx).
