Jay R. Smith1002 Roof Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Universal Roof Drain Membrane Clamping Collar (Roof Drain). Model S1002. Drawing Number: S1002

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1002-Roof-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet
Jay R. Smith 1002 Roof Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
1002 Roof Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1002 Roof Drain - Jay R. Smith Mfg. Co.

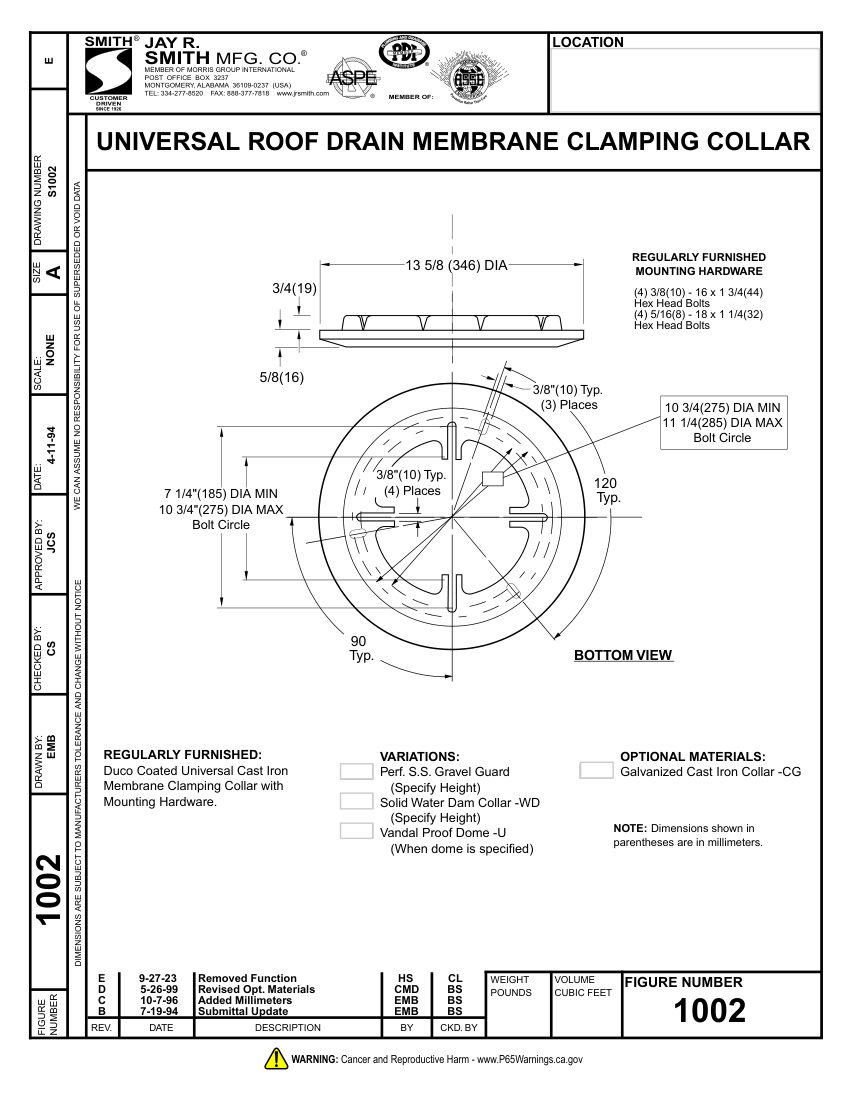

DescriptionJay R. Smith Universal Roof Drain Membrane Clamping Collar (Roof Drain). Model S1002. Drawing Number: S1002
Diameter13 5/8 inches (346 mm)
Mounting Hardware4 x 3/8-16 x 1 3/4 inch
ManufacturerJay R. Smith Mfg. Co.. mounting: 4 x 3/8 (10) - 16 x 1 3/4 (44)
Dimensions13 5/8 (346) DIA.
