Jay R. Smith1083-E-C2 Roof Drain - Jay R. Smith Mfg. Co.

Jay R. Smith Large General Purpose Roof Drain (Roof Drain). Model 1083-E-C2. Free Area: 102.5 Sq. In. (661 Sq. Cm); Polyethylene Dome with Flow Rate Control; Combined Flashing and Gravel Stop; 4 Seepage Openings (1/4" Dia.). mounting: Flat Roof

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF1083-E-C2-Roof-Drain---Jay-R.-Smith-Mfg.-Co..pdfData sheet

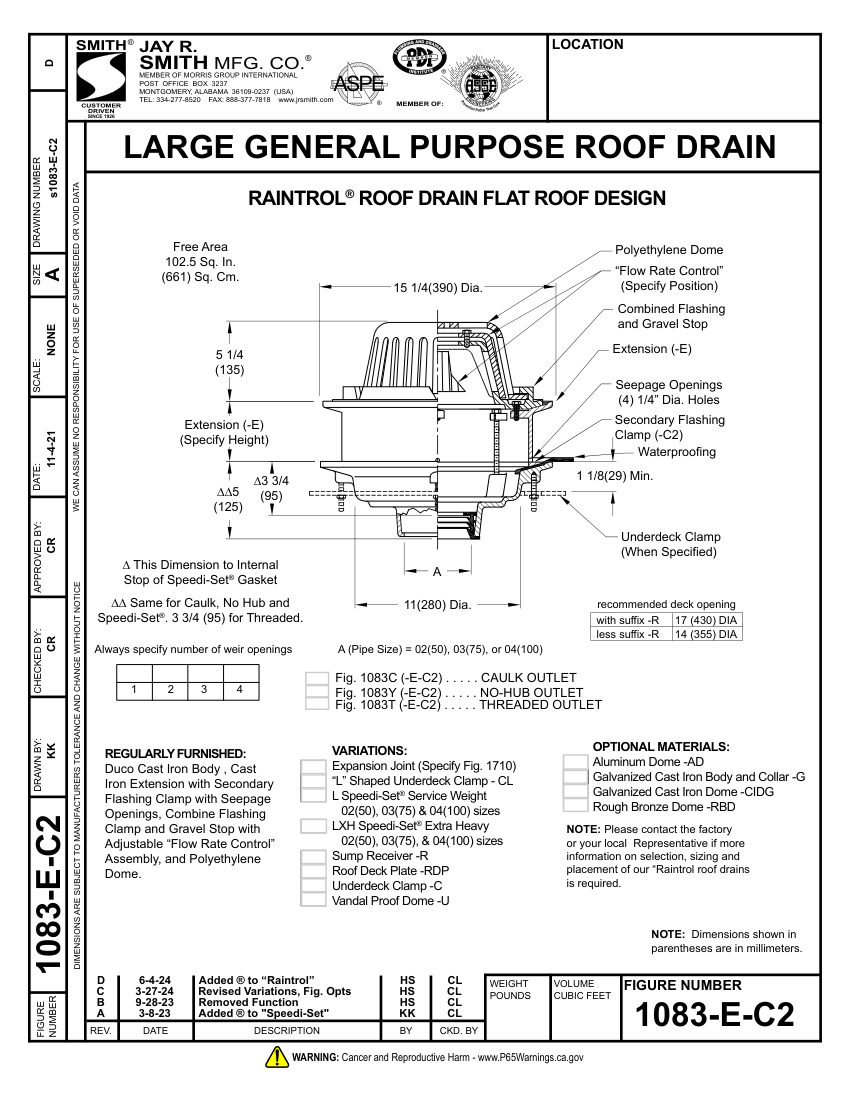

Jay R. Smith 1083-E-C2 Roof Drain - Jay R. Smith Mfg. Co. cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
1083-E-C2 Roof Drain - Jay R. Smith Mfg. Co.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number1083-E-C2 Roof Drain - Jay R. Smith Mfg. Co.
DescriptionJay R. Smith Large General Purpose Roof Drain (Roof Drain). Model 1083-E-C2. Free Area: 102.5 Sq. In. (661 Sq. Cm); Polyethylene Dome with Flow Rate Control; Combined Flashing and Gravel Stop; 4 Seepage Openings (1/4" Dia.). mounting: Flat Roof
DimensionsFree Area 102.5 Sq. In. (661 Sq. Cm); Dome Dia. 15 1/4" (390 mm); Extension 5 1/4" (135 mm).
