Jay R. Smith110 Series Small Area Roof Drain - Jay R. Smith Mf

Jay R. Smith Small Area Roof Drain (Roof Drain). Model 110 Series. Cast iron body, flashing clamp, gravel stop, and dome; Regularly furnished with 6" high cast iron dome; Available in 2", 3", and 4" outlet sizes; No-Hub outlet connection. material: Cast Iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF110-Series-Small-Area-Roof-Drain---Jay-R.-Smith-Mf.pdfData sheet

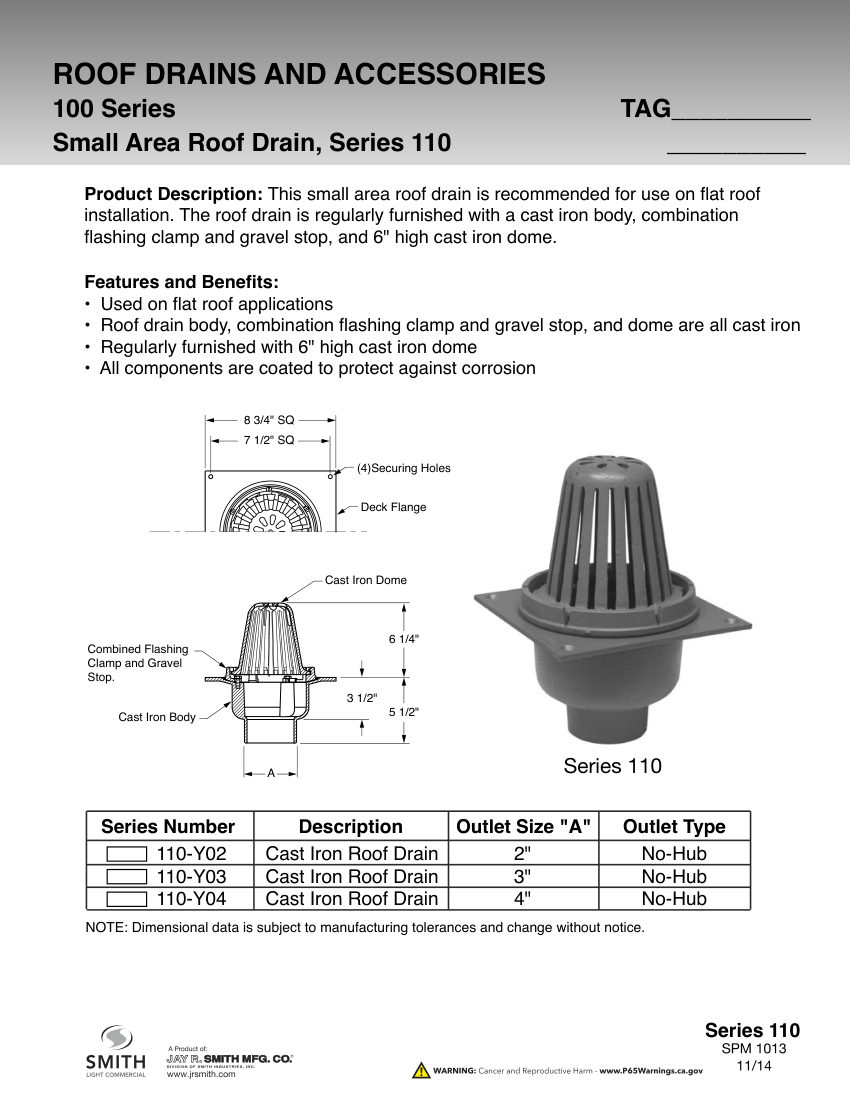

Jay R. Smith 110 Series Small Area Roof Drain - Jay R. Smith Mf cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Jay R. Smith
Catalog no.
110 Series Small Area Roof Drain - Jay R. Smith Mf
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number110 Series Small Area Roof Drain - Jay R. Smith Mf
DescriptionJay R. Smith Small Area Roof Drain (Roof Drain). Model 110 Series. Cast iron body, flashing clamp, gravel stop, and dome; Regularly furnished with 6" high cast iron dome; Available in 2", 3", and 4" outlet sizes; No-Hub outlet connection. material: Cast Iron
Connection size2", 3", 4"
End connectionNo-Hub
FinishCoated
MountingFlat roof
Dimensions8 3/4" SQ, 7 1/2" SQ, 6" high dome.
